110-4102 Micro Drill System
110-4102 Micro Drill System
The Micro-Drill is ideal for precision circuit board grinding and cutting operations.
The Micro-Drill is a workhorse in a kit. This versatile powerhouse is ideal for milling, drilling, grinding, cutting and sanding circuit boards. It removes coating, cuts circuits, cuts leads, drills holes, cuts slots, shapes FR4 and performs many other procedures using various interchangeable bits.

Unlike most hand-held tools, the Micro-Drill has a tiny, high speed DC motor in the hand piece, eliminating bothersome drive cables and giving the technician better control. A separate power supply keeps the hand piece lightweight and reduces fatigue. Power is supplied by a panel switch or foot switch for ease of use.

Features
  Dental quality construction for delicate board work.
Flexible telephone-style cord eliminates bothersome drive cables.
Quick change chuck for easy bit replacement.
Versatile forward, reverse, and variable speeds.
Lightweight, ergonomically designed hand piece reduces fatigue.
Complete - includes ball mills, abrasive bits, and cutting discs.

110-4102 Micro Drill System
2.3.5 Coating Removal, Grinding/Scraping
The Micro-Drill System and various attachments make work of removing coatings fast and accurate.
110-4102 Micro Drill System
3.1 Delamination/Blister Repair, Injection Method
The Micro-Drill System with sensitive control cn be used to drill the precise penetrating holes needed to inject epoxy into delaminated areas and blisters.
110-4102 Micro Drill System
3.5.1 Base Board Repair, Epoxy Method
The Micro-Drill System is a versatile powerhouse and is ideal for milling, drilling, grinding, cutting and any other procedures needed to repair base board damage

110-4102 Micro Drill System
The lightweight handpiece has a quick-change chuck and telephone style cord.
110-4102 Micro Drill System
The control unit has variable speed control up to 35,000 RPM plus switches for hand or foot control.
110-4102 Micro Drill System

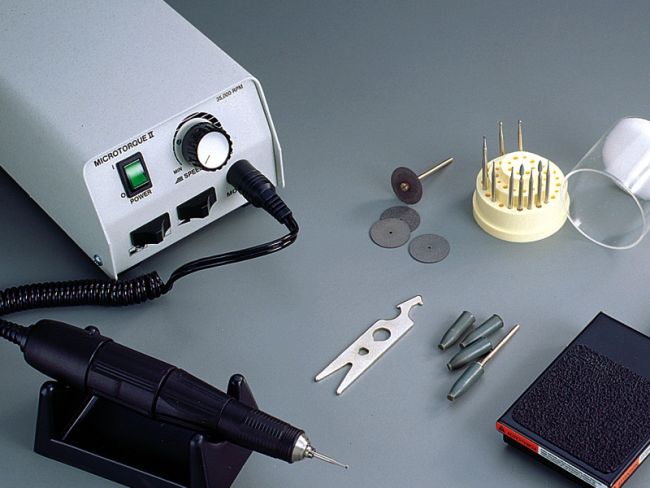

The Micro-Drill System includes a selection of carbide ball mills, cutting discs and abrasive tips.
To order online click the "Order" buttons and follow the on screen instructions.
You may also order from distributors around the world.


Part No. Description Price Order
110-4102 Micro-Drill System, 120 VAC $795.00
110-4103 Micro Drill System, 230 VAC 795.00

Complete System Includes

Part No. Qty Description Price Order
110-4602 4 Abrading Tip, Rubber $1.95 each
115-6064 1Abrading Tip, Stone 5.95
110-4303 1Accessory Stand 7.95
115-6001 1Ball Mill, Carbide, #1, .031" Diameter 5.95
115-6002 1Ball Mill, Carbide, #2, .039" Diameter 5.95
115-6003 1Ball Mill, Carbide, #3, .047" Diameter 5.95
115-6004 1Ball Mill, Carbide, #4, .055" Diameter 5.95
115-6005 1Ball Mill, Carbide, #5, .063" Diameter 5.95
115-6006 1Ball Mill, Carbide, #6, .071" Diameter 5.95
115-6007 1Ball Mill, Carbide, #7, .083" Diameter 5.95
115-6025 1Ball Mill, Carbide, #1/4, .019" Diameter 5.95
115-6050 1Ball Mill, Carbide, #1/2, .027" Diameter 5.95
110-4622 4Cutoff Disk 2.95 pkg/4
110-4502 1Mandrel, Screw 5.95
110-4504 1Mandrel, Threaded 5.95
