201-2100 Professional Repair Kit Instructions Next
The Professional Repair Kit is the most complete and most versatile circuit board repair kit you'll find anywhere. It's the total package.

Includes unique replacement circuits that do not use messy liquid adhesives for bonding. Includes eyelets and setting tools for plated through hole repair, Circuit Tracks to repair damaged circuit traces, adhesives and color agents for solder mask or base board repair all packed in a convenient ESD safe carrying case.

If you need to repair damaged circuit boards, the all-in-one Professional Kit is what you need.
Features
Has everything you need to repair most any type of circuit board damage.
Includes dry film, adhesive-backed replacement circuits that do not use messy liquid adhesives for bonding.
Includes eyelets and setting tools for plated through hole repair.
Includes Circuit Tracks to repair damaged circuits.
Includes adhesives and color agents for solder mask or base board repair.
All the tools and materials are neatly arranged in a conductive, ESD safe carrying case.
Tools and materials conform to IPC guidelines.
Every item is prime quality, time-tested, to meet high standards.
1. Surface Mount Pad Repair - Quick Steps
Evaluate the damage and measure the pad length/width.
Select a replacement pad that matches the missing pad.
Cut out the replacement pad from the Circuit Frame.
Position the new pad using tape then bond in place.
Complete the connection to the existing conductor.
2. Land Repair - Quick Steps
Evaluate the damage and measure the land diameter.
Select a replacement land that matches the missing land.
Cut out the replacement land from the Circuit Frame.
Position the new land using tape then bond in place.
Complete the connection to the existing conductor.
3. Gold Edge Contact Repair - Quick Steps
Evaluate the damage and measure the contact length/width.
Select a replacement contact that matches the missing contact.
Cut out the replacement contact from the Circuit Frame.
Position the new contact using tape then bond in place.
Complete the connection to the existing conductor.
4. Circuit Track Repair Quick Steps
Evaluate the damage and measure the conductor width.
Remove the damage, place the new Track and solder one end.
Form the Circuit Track to match the original conductor path.
Make any final bends and solder the remaining end.
Bond in place and overcoat with epoxy.
5. Plated Hole Repair - Quick Steps
Evaluate the damage and measure the diameter of the hole.
Select an eyelet with the proper dimensions.
Drill out the damaged hole using a ball mill.
Insert the eyelet and form using setting tools.
Completed plated hole repair.
6. Base Board Repair - Quick Steps
Evaluate the damaged base board.
Scrape away the damaged base board material.

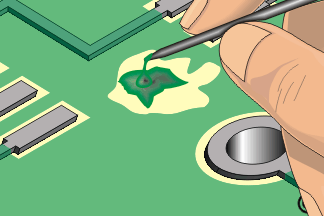

Apply epoxy using a mixing pick.

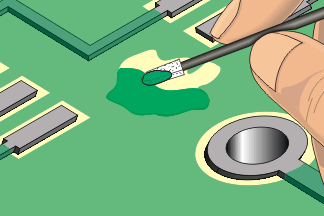

Optionally apply epoxy with a foam swab.
Completed base board repair.
Ordering
Part No. Description Price 1-3 Price 4-7 Price 8-Up Order
201-2100 Professional Repair Kit, 120 VAC $679.00 Each $649.00 Each $599.00 Each
201-2102 Professional Repair Kit, 230 VAC $679.00 Each $649.00 Each $599.00 Each
Professional Repair Kit Includes
Qty Image Part No. Description Price Order
1115-3136 Abrader 115-3136 Abrader
Mild abrasive for removing oxides and contaminates from conductive surfaces.
$7.95 Each
1235-1000-5 Alcohol Swab 235-1000-5 Alcohol Swab
Self-saturating Isopropyl alcohol swab. Squeeze handle to release alcohol.
$4.95 Pkg/5
1115-6000 Ball Mill Pack - Sizes #1/2 - #7 115-6000 Ball Mill Pack - Sizes #1/2 - #7
Pack includes 8 carbide ball mills for precision drilling and grinding.
$31.95 Pkg/8
1115-2706 Bonding Film 115-2706 Bonding Film
Dry film adhesive used to bond lifted lands, pads and conductors.
$16.50 Each
1115-3102 Bonding Iron, 120 VAC 115-3102 Bonding Iron, 120 VAC
Delivers the optimal heat for curing adhesive bonding film.
$79.00 Each
1115-2104 Bonding Tip, Tapered 115-2104 Bonding Tip, Tapered
Tip used to bond replacement conductors to circuit boards for repair.
$45.00 Each
1115-2204 Bonding Tip, .080 115-2204 Bonding Tip, .080" (2.03 mm) Diameter
Tip used to bond replacement conductors to circuit boards for repair.
$45.00 Each
1115-2206 Bonding Tip, .120 115-2206 Bonding Tip, .120" (3.05 mm) Diameter
Tip used to bond replacement conductors to circuit boards for repair.
$45.00 Each
1115-2316 Bonding Tip, .080 115-2316 Bonding Tip, .080" x .120" (2.03 mm x 3.05 mm)
Tip used to bond replacement conductors to circuit boards for repair.
$45.00 Each
1115-2322 Bonding Tip, .120 115-2322 Bonding Tip, .120" x .500" (3.05 mm x 12.70 mm)
Tip used to bond replacement conductors to circuit boards for repair.
$45.00 Each
1115-3108OSP Circuit Board 115-3108OSP Circuit Board
Multilayer circuit board perfect for practice work.
$16.95 Each
4115-3302 Circuit Bond Packs 115-3302 Circuit Bond Packs
Clear, superior strength epoxy in two-compartment plastic packages
$10.95 Each
1 Circuit Frame CC050060AG Circuit Frame
Contacts .050"/.060" (1.27 mm/1.52 mm) - Nickel/Gold
$129.00 Each
1 Circuit Frame CBLANKAS Circuit Frame
Blank - Bright Tin
$39.00 Each
1 Circuit Frame CFV002AS Circuit Frame
Variety - Bright Tin
$39.00 Each
1 Circuit Frame CFV003AS Circuit Frame
Variety - Bright Tin
$39.00 Each
1 Circuit Frame CSVAR1AS Circuit Frame
Variety - Bright Tin
$39.00 Each
1115-5206 Circuit Track, .002 115-5206 Circuit Track, .002" x .006"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
1115-5210 Circuit Track, .002 115-5210 Circuit Track, .002" x .010"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
1115-5315 Circuit Track, .003 115-5315 Circuit Track, .003" x .015"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
1115-5530 Circuit Track, .005 115-5530 Circuit Track, .005" x .030"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
Pkg/5235-2106-5 Cleaning Brushes 235-2106-5 Cleaning Brushes
Disposable brushes for use with solvents for cleaning and application of coatings.
$3.95 Pkg/5
1115-9348 Color Agent, Green 115-9348 Color Agent, Green
Use to tint epoxy for solder mask and base board repair.
$14.95 Each
1115-9358 Color Agent, Light Green 115-9358 Color Agent, Light Green
Use to tint epoxy for solder mask and base board repair.
$14.95 Each
Pkg/25115-7306-25 Eyelet, Flat Flange 115-7306-25 Eyelet, Flat Flange
Brass Eyelet - ID .030" OD .040" Length .093" Flange .060"
$19.50 Pkg/25
Pkg/25115-7366-25 Eyelet, Flat Flange 115-7366-25 Eyelet, Flat Flange
Brass Eyelet - ID .036" OD .046" Length .093" Flange .076"
$19.50 Pkg/25
Pkg/25115-7456-25 Eyelet, Flat Flange 115-7456-25 Eyelet, Flat Flange
Copper Eyelet - ID .045" OD .059" Length .090" Flange .090"
$19.50 Pkg/25
Pkg/25115-7576-25 Eyelet, Flat Flange 115-7576-25 Eyelet, Flat Flange
Copper Eyelet - ID .057" OD .067" Length .095" Flange .111"
$19.50 Pkg/25
1115-3132 File 115-3132 File
High carbon steel needle file perfect for all kinds of detail work.
$6.95 Each
Pkg/5235-2102-5 Foam Swab, 3/16 235-2102-5 Foam Swab
Ideal for absorbing cleaning solvents, and applying color agents and epoxies.
$49.50 Pkg/100
Pkg/120 235-3025 High Temp Tape Discs 235-3025 High Temp Tape Discs
High temperature polyimide tape discs, .25" diameter.
$5.95 Pkg/120
Pkg/60235-3050 High Temp Tape Discs 235-3050 High Temp Tape Discs
High temperature polyimide tape discs, .50" diameter.
$5.95 Pkg/60
Pkg/20235-3100 High Temp Tape Discs 235-3100 High Temp Tape Discs
High temperature polyimide tape discs, 1.00" diameter.
$5.95 Pkg/20
1355-0614 Knife with #16 Blades 355-0614 Knife with #16 Blades
A must-have tool for precise cutting, scraping and trimming.
$9.95 Each
1115-3115 Measuring Microscope Pen, 25X 115-3115 Measuring Microscope Pen, 25X
Pocket pen microscope with measuring reticle.
$34.95 Each
Pkg/5355-3102-5 Micro Probes 355-3102-5 Micro Probes
Use to dispense a minute amount of adhesive and for micro-positioning of small objects.
$4.95 Pkg/5
Pkg/5115-3315-5 Mixing Picks 115-3315-5 Mixing Picks
Unique mixing sticks have a paddle shape on one and sharp pick on the opposite end.
$9.50 Pkg/100
5115-3312 Plastic Cup 115-3312 Plastic Cup
Small disposable cup for mixing epoxies and holding small items.
$9.50 Pkg/100
1335-3195 Probe 335-3195 Probe
Sharp dental style probe for manipulating small objects and removal of small debris.
$9.95 Each
1335-3197 Scraper 335-3197 Scraper
Hardened stainless steel tip for scraping solder mask and removing defects.
$9.95 Each
2115-3120 Setting Tool 115-3120 Setting Tool
Used to properly form eyelets used to repair plated holes in circuit boards.
$16.95 each
Pkg/3115-3902 Syringes 115-3902 Syringes
Polypropylene syringe barrels with stainless steel dispensing tips.
$7.95 Pkg/3
1115-3122 Tool Base 115-3122 Tool Base
Support base for Setting Tool when forming eyelets for plated hole repair.
$9.95 Each
1115-3139 Tool Grip 115-3139 Tool Grip
Handy tool has vise jaws to grip small items.
$29.00 Each
1335-5188 Tweezer, Crossover 335-5188 Tweezer, Crossover
Self locking stainless steel tweezers provide hands-free clamping force.
$5.95 Each
1335-5185 Tweezer, Point Tip 335-5185 Tweezer, Point Tip
Fine point tweezers for precision work.
$5.95 Each
1335-3196 Wire Guide 335-3196 Wire Guide
Use to form bends in wires and hold wires during soldering and bonding.
$9.95 Each
