First-Aid Kits for Circuit Boards, time-tested and guaranteed.
|
|
|
|
CFV003AS Circuit Frame
Imagine replacing damaged circuits without the mess of liquid epoxy, with a bond strength equal to the original, on bare
or loaded circuit boards -- all in about 30 seconds. Our replacement Circuit Frames with dry-film adhesive backing make
this delicate, precise procedure quick and neat. Trim out the circuit you need and bond it to the circuit
board surface with a bonding iron or bonding press.
 |

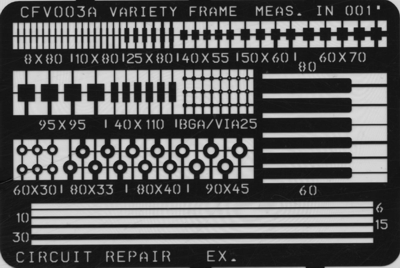

| Shown Approximately 2X Actual Size |
| Overall Frame Size |
2.25" x 1.50" (57 x 38 mm) |
| Base Material |
Rolled annealed copper foil .0014" (.036 mm)
thick. |
| Adhesive Backing |
Phenolic Butral film adhesive .0018" (.046 mm)
thick. |
| Bonding Temperature |
475°F ± 25°F (246°C ± 14°C) |
| Bonding Time |
30 seconds |
| Peel Strength |
Minimum 8 lbs/inch (1.43 kg/cm) after cure to FR-4
material. |
| Shelf Life |
6 months minimum. Each Circuit Frame is stamped with
the
expiration date. |
| Plating Options * |
 Tin/Lead: .0005" (.0127 mm) 60/40 Tin/Lead minimum.
Bright Tin (Lead Free): .0005" Tin (.0127 mm) minimum.
Nickel/Gold: Gold .000050" (.00127 mm) min. - Nickel .000100" (.00254 mm) min.
Note: Tin/Lead Circuit Frames have a min. 12 piece order and 5 week lead time.
|
Ordering Information
See the full list of Circuit Frames.
Circuit Frames may be ordered from distributors around the world. See our Distributor List.
To order online click the "Order" button and follow the on screen instructions.
|
|
| Part No. |
Description |
Plating * |
Bonding Tip |
Load |
Price Each |
Order |
| CFV003AS |
Variety, Lead Free |
Bright Tin |
Variety |
** |
$39.00 |
|
Freight, duties, and value added taxes may increase prices for products outside USA.
|
