110-6380 Flex-Rack PCB Holder

  • Dual slide rails provide adjustment for holding assembled circuit boards up to 12" (300 mm) wide.

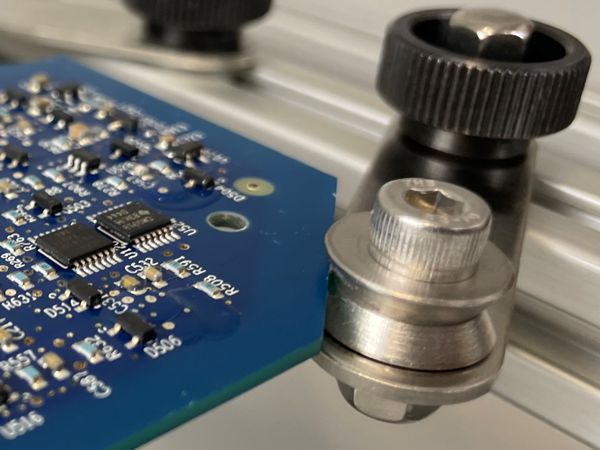

  • Circuit boards can be held by the edges using the Edge Clamp v-grove.

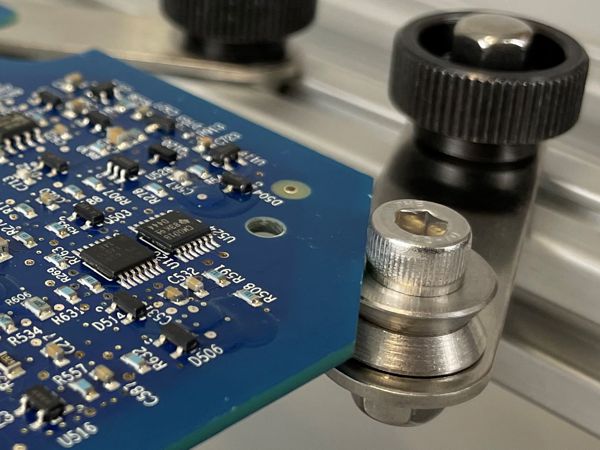

  • Circuit boards can be placed on the top rim of the Edge Clamps for rapid processing.

Dual slide rails provide adjustment for holding assembled circuit boards up to 12" (300/ mm) wide. Six edge clamps ensure the circuit board is held securely level for applications, including hot air rework, drilling, pad repair, positioning, and other applications that require holding your circuit boards for precision work.

Circuit boards can be held by the edges using the Edge Clamp v-grove. If needed, the holder may be flipped over, keeping the circuit board secure. Circuit boards may also be placed on the top rim of the Edge Clamps for rapid positioning.

The legs provide a 2-4" (50-100 mm) clearance above preheaters and tool base plates. The heavy-duty aluminum and stainless steel construction ensures the holder is grounded and rigid.

110-6380 Flex-Rack PCB Holder
Offer Expires September 1, 2024
Ordering
Part No. Description Price Qty / Order
110-6380 Flex-Rack PCB Holder $595.00 Each
Order direct or from a distributor. Freight, duties, and value added taxes may increase prices for products outside the USA.
Classifications
Harmonize Code 8205.59.0000
Export Administration Regulations (EAR) EAR99
Export Control Classification Number (ECCN) Not Applicable
Optional Items
Part No. / Item Price Order
620-0016 Nut, T-Slot, 5 mm Thread
Nuts used in the extrusion slide rails of the Flex-Rack PCB Holder.
$39.50 Pkg/10
Instructions and Safety Data Sheets
Instructions 110-6380 Flex-Rack PCB Holder
