201-5231 Circuit Bonding System

  • You'll appreciate the precision and accuracy of the Circuit Bonding System when working with small circuit board patterns, including surface mount and BGA pads.

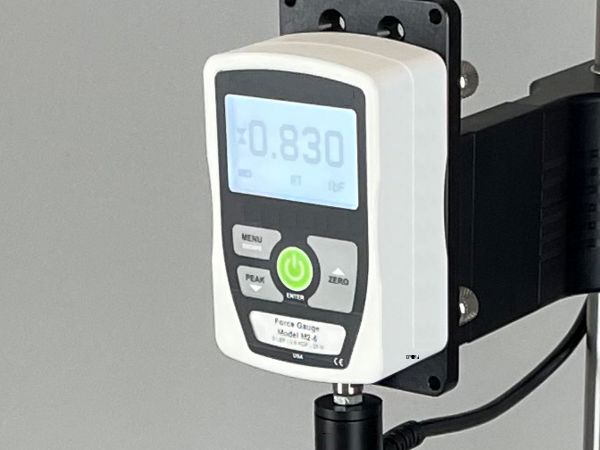

  • The system includes a Force Gaguge to set and maintain the required force throughout the 30-second bonding cycle.

  • Use the Bonding System and Circuit Frames to replace lifted and damaged surface mount and BGA pads and lands. The repaired pads will meet the highest IPC guidelines.

  • Includes a Flex-Rack PCB Holder to keep the circuit board flat and stable during the bonding cycle.

You'll appreciate the accuracy of this precision machine, especially when replacing and repairing surface mount and BGA pads.

The Bonding System gives the operator precise control over the bonding process and ensures optimal bonding film adhesion and process repeatability.

The system includes a compression force gauge to apply the required bonding force during the 30-second bonding cycle to repair damaged surface mount pads, lands, edge contacts, and other circuit board patterns.

The included Bonding System Heater has adjustable temperature control and multiple interchangeable tips. Depending on the system ordered, it will be either 120 VAC or 220 VAC.

The system comes with the Flex-Rack PCB Holder to maintain circuit board stability during the bonding cycle.

Shown with Optional Extension Block Kit
System Specifications
Frame ConstructionAluminum and steel
Throat Depth3.00" (76 mm), 6.50" (165 mm) with Extension Block Kit
Weight15 lb. (6.8 kg.)
Force Gauge Power InputBattery operated including AC adapter.
Bonding System Heater Temperature Range180 °C to 450 °C
Bonding System Heater Power Consumption90 Watts
Bonding System Heater Output Voltage24 VAC
Heat Up Time5 minutes
Features
Precision design for bonding of extremely small pads.
Heavy duty aliminum and stainless steel construction.
Wide, heavy base plate for stability.
Force gauge maintains regulated bonding force.
Includes Flex-Rack PCB Holder for precision circuit board positioning.
CE Marked - conforms with European health, safety, and environmental protection standards.
Ordering
Part No. Description Price Qty / Order
201-5231 Circuit Bonding System, 120 VAC $5,995.00 Each
201-5232 Circuit Bonding System, 220 VAC $5,995.00 Each
Order direct or from a distributor. Freight, duties, and value added taxes may increase prices for products outside the USA.
Classifications
Harmonize Code 8514.10.0000
Export Administration Regulations (EAR) EAR99
Export Control Classification Number (ECCN) Not Applicable
Circuit Bonding System Includes
Qty Part No. / Item Price Qty / Order
1

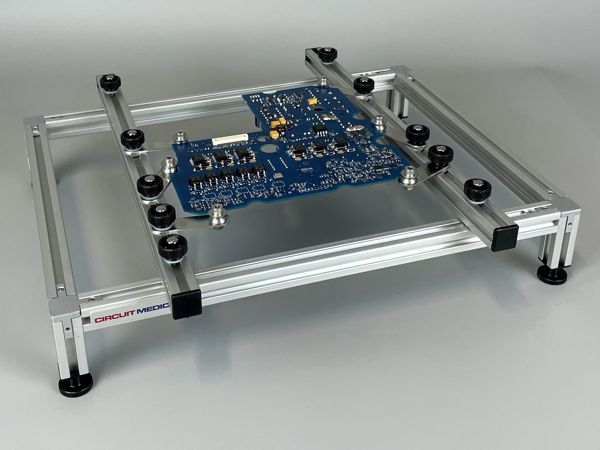

110-6380 Flex-Rack PCB Holder
Sturdy holder supports PCBs for rework, drilling, pad repair, and positioning.
$595.00 Each
1

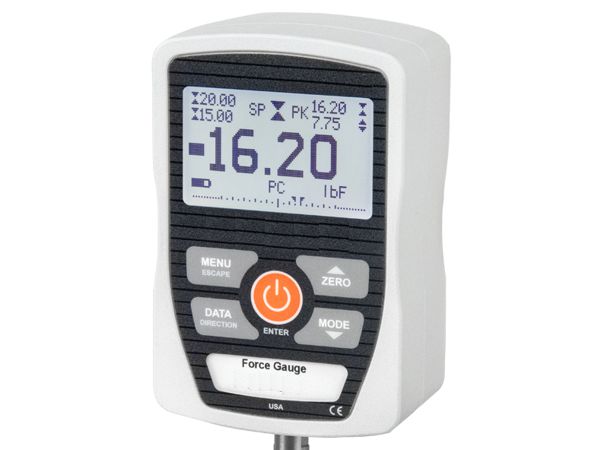

115-4202 Digital Force Gauge
Force gauge used with Circuit Bonding System.
$1,995.00 Each
1

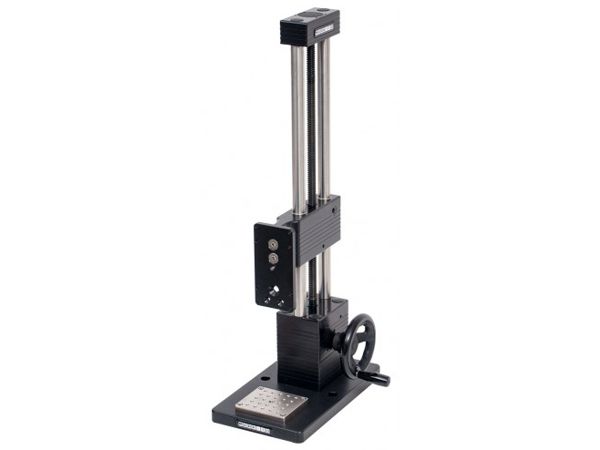

115-4204 Bonding System Stand
Stand included with the Circuit Bonding System.
$3,995.00 Each

Power Options
Qty Part No. / Item Price Qty / Order
1
115-3200 Bonding System Heater, 120 VAC
Bonding System Heater, 120 VAC
$595.00 Each
1
115-3202 Bonding System Heater, 220 VAC
Bonding System Heater, 220 VAC
$595.00 Each
Optional Items
Part No. / Item Price Order
115-4206 Extension Block Kit
Blocks to extend throat depth on the Circuit Bonding System.
$295.00 Each
Instructions and Safety Data Sheets
Instructions 201-5231 Circuit Bonding System
Instructions 201-5232 Circuit Bonding System, 220 VAC
Reference Guide Procedures
Number / Title
4.1.2 Lifted Conductor Repair, Film Adhesive
4.2.2 Conductor Repair, Foil Jumper, Film Adhesive Method
4.5.2 Land Repair, Film Adhesive
4.6.2 Edge Contact Repair, Film Adhesive
4.7.2 Surface Mount Pad Repair, Film Adhesive
4.7.3 BGA Pad Repair, Film Adhesive
