310-1002 Wire Dots, .394" (10.0 mm) Square
|
| $49.00 pkg/210 |
DATA SHEET |

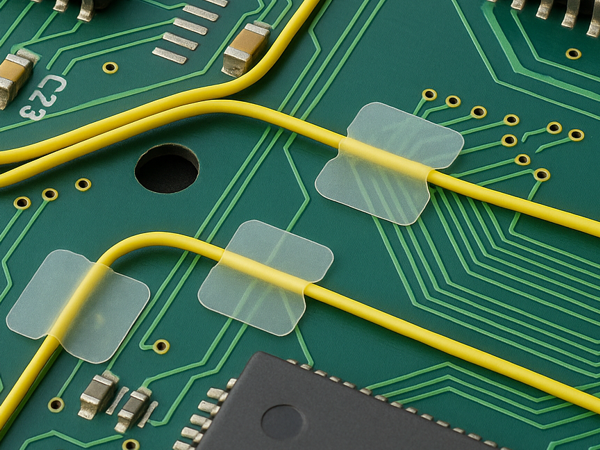

Wire Dots are adhesive-backed polymer discs designed to quickly and securely tack jumper wires to printed circuit boards during repair and modification procedures. These pre-cut round dots provide a neat and reliable alternative to messy adhesives or hot-melt materials when securing wires to the board surface.
Each Wire Dot consists of a thin, flexible polyester film coated with a high-performance electronics-grade pressure-sensitive acrylic adhesive. The result is a highly conformable bond that firmly holds wires in place while maintaining long-term durability.
The adhesive develops strong initial bond strength that increases over time and performs reliably in demanding environments. Wire Dots maintain adhesion after exposure to high humidity, hot-water board cleaning, UV exposure and many common chemicals used in
Supplied on a release liner for easy handling, these dots help technicians organize jumper wires and create professional-looking repairs while maintaining the reliability required for high-quality PCB rework.
|
| Ordering |
| Part No. |
Description |
Price |
Qty / Order |
| 310-1002 |
Wire Dots, .394" (10.0 mm) Square |
$49.00 pkg/210 |
|
|
| Material Properties |
| Cover Film |
Clear Polyester Film 1.0 mil (.025 mm) Thick |
| Adhesive |
High performance Acrylic Adhesive 5.2 mils (0.13 mm) Thick (3M #3468MP) |
| Relative High Temperature Operating Ranges |
Short term (minutes/hours) 400°F (204°C)
Long term (days/weeks) 300°F (149°C) |
| Application |
Specifically designed for long term bonding to printed circuit boards and high surface energy plastics for the aerospace, medical and
industrial equipment, automotive, appliance and electronic markets.
|
| Shelf Life |
Minimum 12 months.
|
| Safety Data Sheet |
Safety Data Sheet
|
|
| Physical/Thermal Properties |
| Property |
Typical Value |
Unit |
Test Method |
| Peel Strength 72 hrs @ 22 C |
84 |
0z./in. |
ASTM D3330 Modified |
| Static Shear Strength 72 F (22 C) / 1000g |
>10,000 |
min |
ASTM D3654 |
| Tensile Strength (Yield) 72 F (22 C) |
>2600 |
psi |
ASTM D2370 |
| Elongation |
100 |
% |
ASTM D2370 |
| Thermal Conductivity |
0.17 |
w/m-k |
ASTM C518 |
| Coefficient of Thermal Expansion |
5.5 x 10 -4 |
m/m/C |
ASTM D696 25-175C |
|
| Electrical Properties |
| Property |
Typical Value |
Unit |
Test Method |
| Dielectric Strength |
1700 |
volts/mil |
ASTM D149 |
| Dielectric Constant 25 C, 1 kHz |
3.4 |
------ |
ASTM D150 |
| Dissipation Factor 25 C, 1 kHz |
0.018 |
------ |
ASTM D150 |
| Surface Resistivity - Adhesive Layer |
>1 x 10 14 |
ohm/square |
ASTM D257 |
| Surface Resistivity - Polymer Film Layer |
>1 x 10 16 |
ohm/square |
ASTM D257 |
| Volume Resistivity - Adhesive Layer |
>1 x 10 15 |
ohm/cm |
ASTM D257 |
| Volume Resistivity - Polymer Film Layer |
>1 x 10 18 |
ohm/cm |
ASTM D257 |
| Insulation/Moisture Resistance - Adhesive Layer |
>1 x 10 11 |
ohm |
MIL-I-46058C (100 VDC 60 sec) |
| Insulation/Moisture Resistance - Polymer Film Layer |
>1 x 10 12 |
ohm |
MIL-I-46058C (100 VDC 60 sec) |
| Voltage Breakdown |
3500 |
volts |
------ |
|
|
| Classifications |
| Harmonize Code |
3919.10.0000 |
| Export Administration Regulations (EAR) |
EAR99 |
| Export Control Classification Number (ECCN) |
Not Applicable |
|
