Circuit board rework and repair tools and materials

World's #1 First-Aid Kits for Circuit Boards ^®

For over 40 years, CircuitMedic kits, tools, and materials have been developed, refined, and tested by Circuit Technology Center, the global leader in high reliability circuit board and electronic component rework and repair services.

Circuit Medic

World's #1 First-Aid Kits for Circuit Boards ®

201-2100 Professional Repair Kit

Professional Repair Kit

Kit to repair damaged pads, lands, conductors, base material, and plated holes.

201-2400 Master Repair Kit

Master Repair Kit

Kit to repair circuit board damage including pads, lands, conductors and base material.

201-1400 Land/Pad Repair Kit

Land/Pad Repair Kit

Kit to repair circuit board damage including lands and pads.

201-1600 Aerospace Repair Kit

Aerospace Repair Kit

Kit to replace damaged lands and pads where out-gassing of epoxy may be an issue.

201-3110 Base Board Repair Kit

Base Board Repair Kit

Kit to repair base board and laminate damage on circuit boards.

201-3130 Circuit Track Kit

Circuit Track Kit

Kit to repair circuit board damage including traces and conductors.

201-6100 Gold Contact Plating Kit

Gold Contact Plating Kit

Kit to repair and replate damaged gold edge contacts and pads on circuit boards.

201-3160 Heat Shield Kit

Heat Shield Kit

Kit with materials needed to protect heat sensitive area of a circuit board during rework.

201-3140 Plated Hole Repair Kit

Plated Hole Repair Kit

Kit to repair damaged plated holes on circuit boards using eyelets.

Circuit Frames

Circuit Frames for surface mount pad, BGA pad and conductor repair.

525-2001 Circuit Frame Assortment, Bright Tin Plated

Circuit Frame Assortment

Four popular Circuit Frames for surface mount pad and conductor repair.

Circuit Tracks

Rectangular shaped pure copper ribbon designed to replace damaged circuit board conductors.

115-1322 Circuit Bond Kit

Circuit Bond Kit

Includes clear, low viscosity, superior strength epoxy for circuit board damage repair.

Circuit Bond Epoxy

Circuit Bond Epoxy

Superior strength 2-part epoxy supplied in pre-measured packaging used for many circuit board applications.

Color Agents

One part, semi-paste ink used to tint the color of epoxy and for direct printing on circuit board surfaces.

BGA Component Reball Fixtures

BGA Component Reball Fixtures

BGA Reball Fixtures precision-built for a specific BGA component.

Bonding Tips

Bonding Tips to use with the Bonding Stations and Bonding Systems.

201-5231 Circuit Bonding System

Circuit Bonding System

System to thermally bond replacement conductors, BGA pads, and SMT pads.

110-5202 Eyelet Press

Heavy duty eyelet press designed to set and form eyelets in circuit boards.

Eyelets

Copper and brass eyelets electroplated with tin designed for repair of plated through holes.

110-6380 Flex-Rack PCB Holder

Flex-Rack PCB Holder

Sturdy holder supports PCBs for rework, drilling, pad repair, and positioning.

110-4106 Micro Drill System

Micro Drill System

Versatile power tool for milling, drilling, grinding, cutting and sanding circuit boards.

Plating Tools and Solutions

Plating Solutions and Anodes

Plating tools, plating anodes and various plating solutions for gold contact repair.

201-7100 Precision Tool Set

Precision Tool Set

Nine precision-crafted tools for detailed circuit board work.

Wire Dots

Pre-cut polymer film tape with a high performance adhesive designed for tacking wires.

201-4350 Repair Skills Practice Kit

Repair Skills Practice Kit

Training kit to practice circuit board repair skills prior to testing for certification.

201-4150 Solder Skills Practice Kit

Soldering Skills Practice Kit

Training kit to practice circuit board soldering skills prior to testing for certification.

Circuit Medic

World's #1 First-Aid Kits for Circuit Boards

SLIDESHOW STARTING

❮ ❯

Product Application Grid

APPLICATION

PRODUCT

Baseboard

Circuit Traces

Coatings

Drilling, Grinding

Gold Contacts

Hand Tools

Jumper Wires

Plated Holes

SMT Pads
& Lands

Training

Professional Repair Kit

✔

✔

✔

✔

✔

✔

Master Repair Kit

✔

✔

✔

✔

✔

Land/Pad Repair Kit

✔

✔

Aerospace Repair Kit

✔

Baseboard Repair Kit

✔

✔

Circuit Bond Kit

✔

✔

Circuit Track Kit

✔

Gold Contact Plating Kit

✔

Plated Hole Repair Kit

✔

Repair Skills Practice Kit

✔

Soldering Skills Practice Kit

✔

Circuit Bonding System

✔

✔

Micro-Drill System

✔

✔

Precision Tool Set

✔

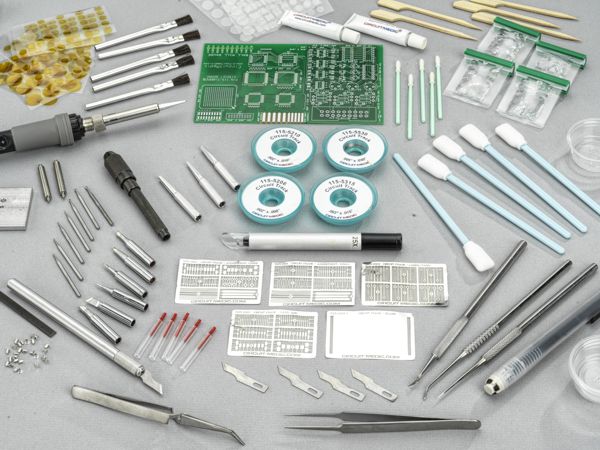

201-2100 Professional Repair Kit

Professional Repair Kit

The Professional Repair Kit is the most complete circuit board repair kit you'll find anywhere. It's the total package.

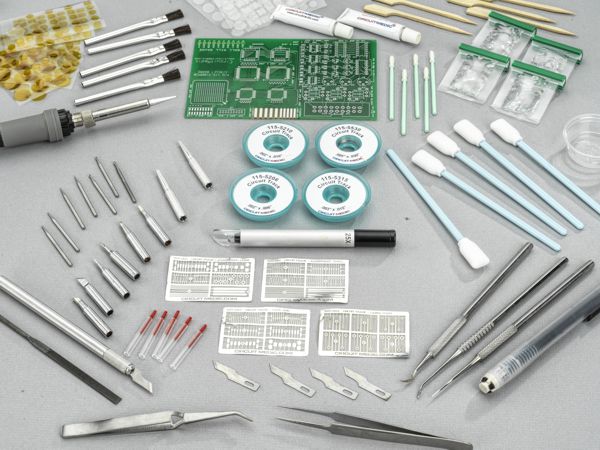

201-2400 Master Repair Kit

Master Repair Kit

This mid-priced kit includes almost everything you need to repair damage to assembled circuit boards, except for plated hole repair.

201-1400 Land/Pad Repair Kit

Land/Pad Repair Kit

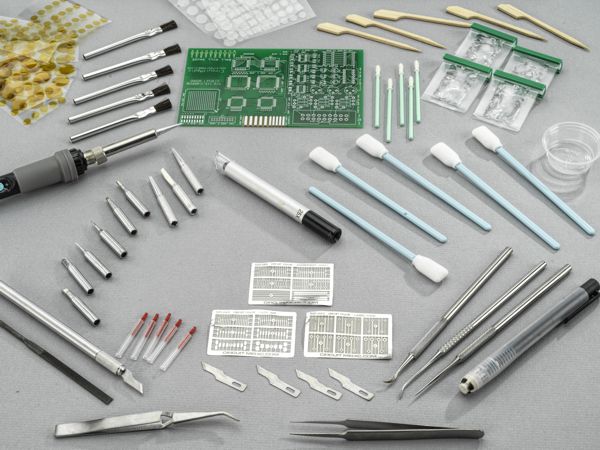

This kit includes the tools and materials needed to reliably repair or replace damaged lands, surface mount, and BGA pads.

201-1600 Aerospace Repair Kit

Aerospace Repair Kit

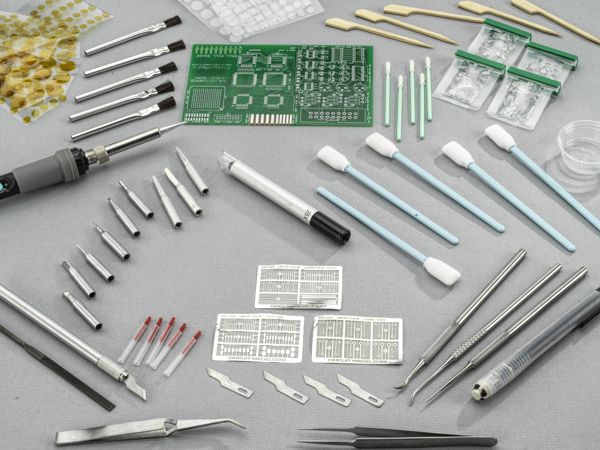

This kit includes the tools and materials to replace damaged lands, surface mount, and BGA pads. The kit is designed for Aerospace applications where out-gassing of epoxy may be an issue.

201-3110 Base Board Repair Kit

Base Board Repair Kit

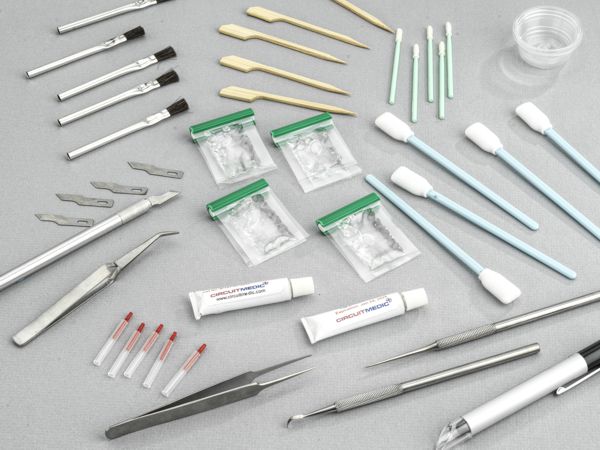

This kit includes epoxies and color agents to repair base board material, solder mask, and coatings. The epoxy is precisely measured in two-compartment plastic packages, so there's no measuring.

201-3130 Circuit Track Kit

Circuit Track Kit

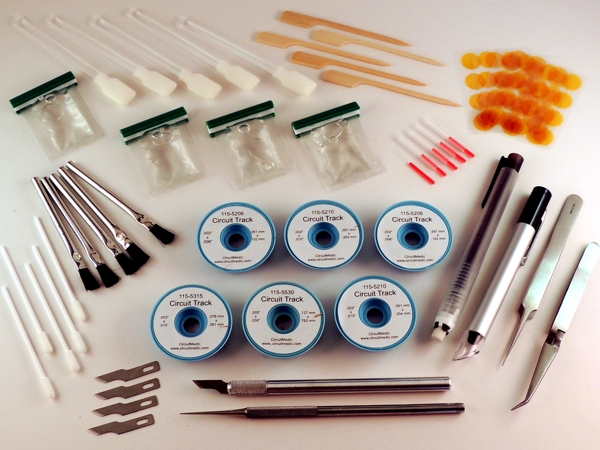

It's now easier than ever to repair damaged circuits. Circuit Tracks are rectangular-shaped conductors made of pure copper. These rectangular ribbons closely conform to the original conductor dimensions.

201-6100 Gold Contact Plating Kit

Gold Contact Plating Kit

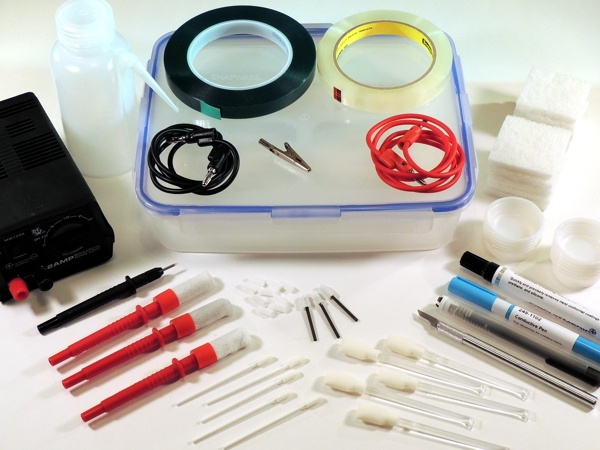

Here's the perfect kit for replating solder-contaminated or damaged gold edge contacts. The kit includes a DC power supply and all the tools, materials, and plating solutions needed for gold-edge contact plating.

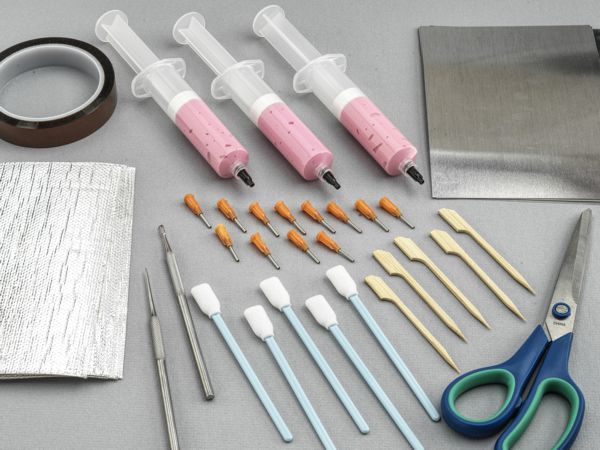

201-3160 Heat Shield Kit

Heat Shield Kit

This kit includes all the tools and materials you need to protect heat-sensitive areas of an assembled circuit board from excessive heat exposure during rework operations.

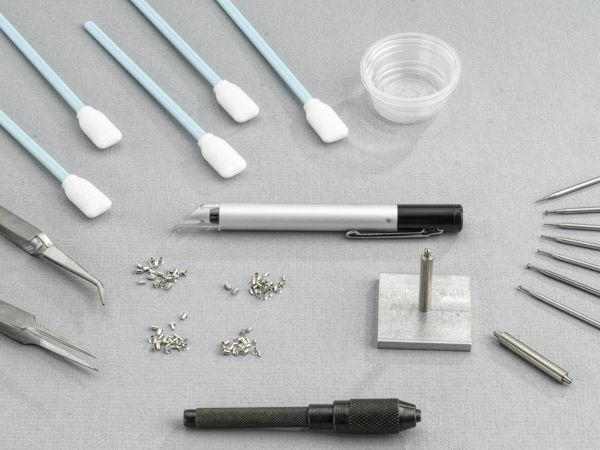

201-3140 Plated Hole Repair Kit

Plated Hole Repair Kit

This kit includes all the tools and materials you need to repair damaged plated through holes in circuit boards.

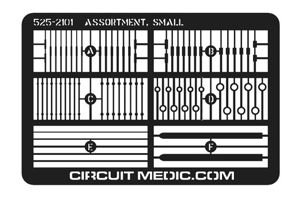

Circuit Frames

Imagine replacing damaged surface mount pads, lands, and conductors without using messy liquid epoxy. Circuit Frames with dry-film adhesive backing make this IPC-recommended procedure fast and easy, meeting the highest conformance level.

525-2001 Circuit Frame Assortment, Bright Tin Plated

Circuit Frame Assortment

This package includes four popular Circuit Frames for surface mount pad and conductor repair.

Circuit Tracks

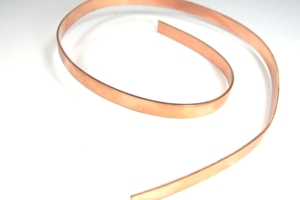

Circuit Tracks are rectangular-shaped conductors made of 99.9% pure CDA 11000 copper. These rectangular ribbons closely conform to the original conductor dimensions and are bonded in place using epoxy.

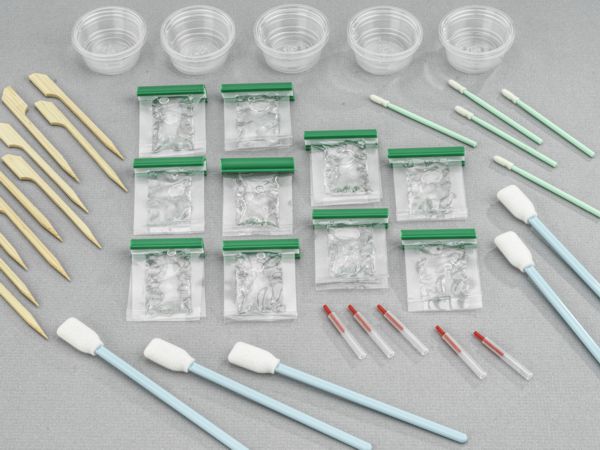

115-1322 Circuit Bond Kit

Circuit Bond Kit

The Circuit Bond Kit contains ten packages Circuit Bond Epoxy. This clear, low viscosity, superior strength epoxy, is precisely measured into two-compartment plastic packages. This adhesive is easy to use, and there's no measuring.

Circuit Bond Epoxy

Circuit Bond Epoxy

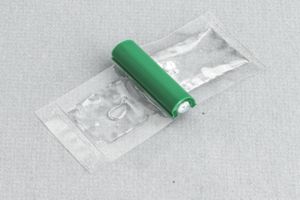

Circuit Bond is a clear, low-viscosity, superior-strength epoxy precisely measured into two-compartment plastic packages. It's easy to use and requires no measuring. Designed for baseboard repairs, bonding pads, lands, conductors, and many other high-strength uses.

Color Agents

Color Agents are a one-part semi-paste ink commonly used to print hard surfaces, including circuit board base materials. Use Color Agents to tint the color of epoxy used for solder mask repair or circuit baseboard repair.

BGA Component Reball Fixtures

BGA Component Reball Fixtures

CircuitMedic BGA Reball Fixtures are precision-built for a specific BGA component. The fixture includes an upper and lower aluminum frame using precision laser-cut, stainless steel templates. The fixture has no moving parts to ensure precision and accuracy.

Bonding Tips

Bonding Tips fit into the hand held Bonding Iron or Circuit Bonding System. Used to apply heat and pressure to bond adhesive-backed replacement lands, pads, and edge contacts to a circuit board surface.

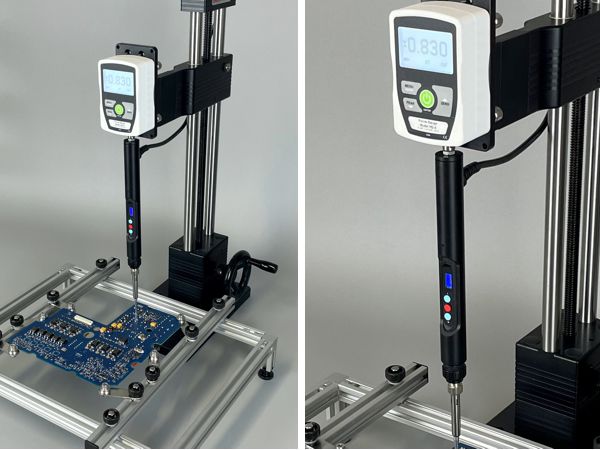

201-5231 Circuit Bonding System

Circuit Bonding System

You'll appreciate the accuracy of this precision machine, especially when repairing surface mount and BGA pads.

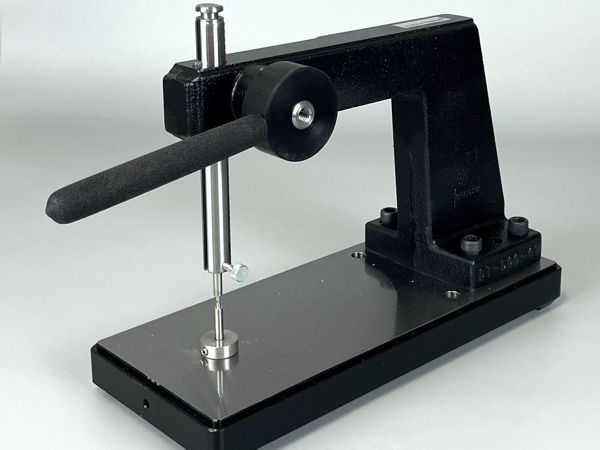

110-5202 Eyelet Press

This rugged, heavy-duty press precisely forms eyelets in circuit boards for repair or assembly, ensuring the eyelets meet industry guidelines.

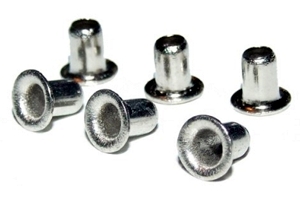

Eyelets

CircuitMedic Eyelets are manufactured from copper or brass and electroplated with tin. Hand Tools and Eyelet presses are available for setting eyelets into circuit boards to meet industry specifications.

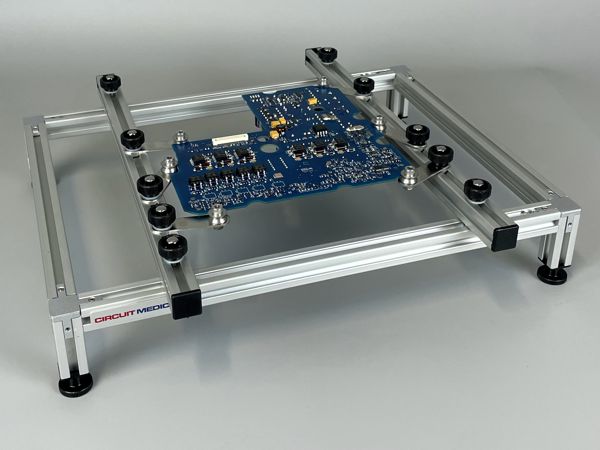

110-6380 Flex-Rack PCB Holder

Flex-Rack PCB Holder

This sturdy circuit board holder supports PCBs for rework, drilling, pad repair, and precision positioning. Dual slide rails provide adjustment for holding assembled circuit boards up to 12" (300/ mm) wide.

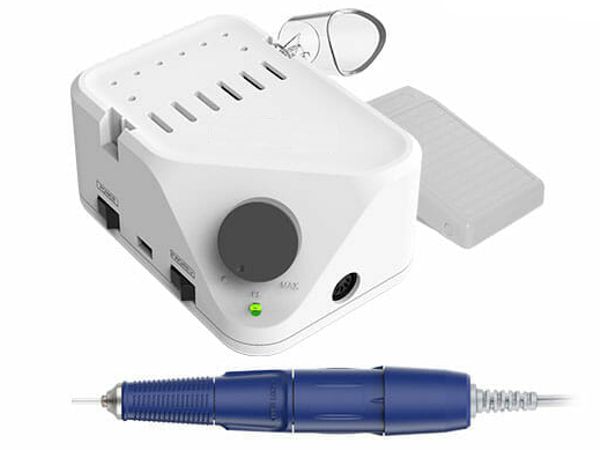

110-4106 Micro Drill System

Micro Drill System

This versatile tool is ideal for milling, drilling, grinding, cutting, and sanding circuit boards. Use it to remove coatings, cut circuits, cut leads, drill holes, and perform many other procedures using interchangeable bits.

Plating Tools and Solutions

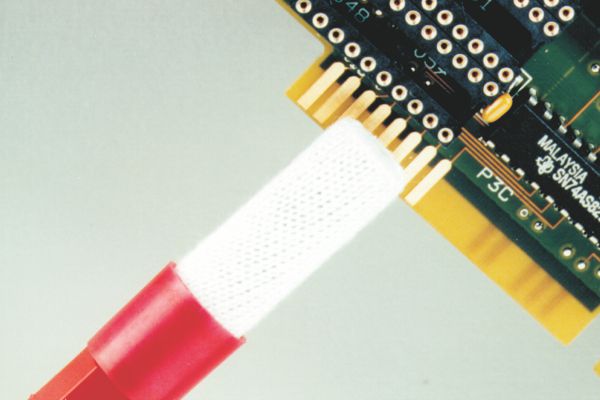

Plating Solutions and Anodes

Electroplating solutions, tools, and supplies for repair and replating of circuit board pads and edge contacts and various gold and nickel-plated surfaces.

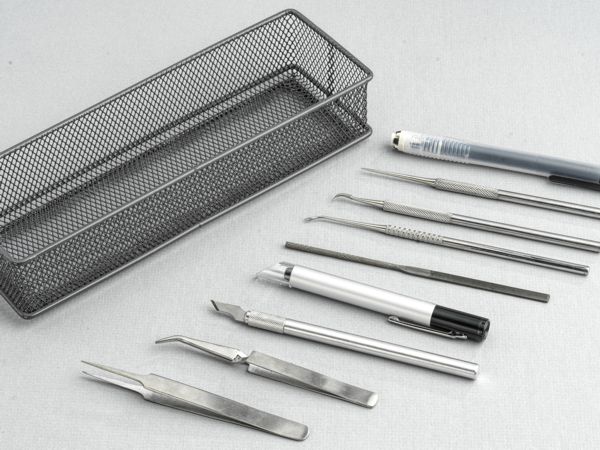

201-7100 Precision Tool Set

Precision Tool Set

This set of nine precision-crafted tools is designed specifically for detailed circuit board work. This comprehensive kit is perfect for professionals, offering everything you need to achieve the highest conformance on every project.

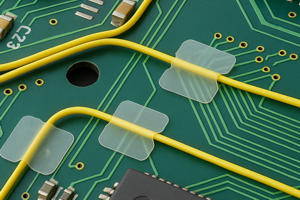

Wire Dots

Wire Dots are a wire tacking system consisting of pre-cut shapes of a thin, flexible polymer film coated on one side with a high-performance, electronics-grade permanent pressure-sensitive adhesive.

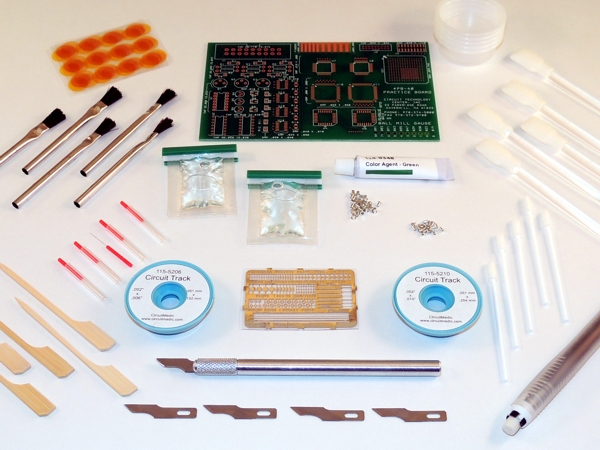

201-4350 Repair Skills Practice Kit

Repair Skills Practice Kit

This kit will help operators improve their circuit board repair skills and give them an advantage toward becoming IPC certified.

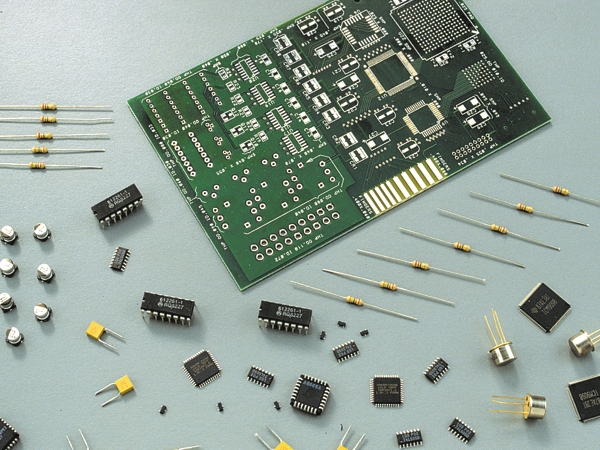

201-4150 Solder Skills Practice Kit

Soldering Skills Practice Kit

Are your new soldering and rework operators skilled enough to work on your valuable products? Have they practiced enough to go for certification? The best way to find out is to order our Soldering Skills Practice Kit, which lets them practice until they develop the needed expertise.

We provide the various components and a practice board; you decide when they're ready. The soldering skills kit covers the soldering of the following component types onto the bare circuit board supplied.

Components Included

Qty Part No. Description Type

1 115-3108 Practice Circuit Board -

10 115-3358 Resistor, 0805 Chip

10 115-3336 Resistor, 1206 Chip

6 115-3330 Capacitor, 1206 Chip

5 115-3348 Capacitor, Tantalum Chip

8 115-3332 MELF Diode, 1206 Chip

3 115-3338 QFP-44, 0.8mm Pitch Gull Wing

3 115-3340 QFP-100, 0.5mm Pitch Gull Wing

8 115-3342 SOIC-14 Gull Wing

6 115-3344 SOT-23 Gull Wing

3 115-3334 PLCC-28 J Lead

6 115-3320 Resistor, 1/4 Watt Through Hole

3 115-3322 Transistor, TO-5 Through Hole

3 115-3324 Transistor, TO-18 Through Hole

6 115-3350 Capacitor, CK05 Through Hole

3 115-3328 DIP-14, Narrow Through Hole

Trusted Worldwide

Decades of proven experience, unmatched quality, and a satisfaction guarantee trusted by top commercial and military manufacturers.

Decades of Experience

Our tools and materials has been used by manufacturers for over 40 years.

IPC Designed

Designed, tested, and built to comply with IPC specifications and guidelines.

Guarantee

Every item is backed with a 100% performance guarantee.

2-Day Shipping

Most items are in stock and available and ship to you within 2 days.

Online Guides

We have an online guidebook including over 100 circuit board repair and rework procedures.

Time-Tested

All tools and materials are test and continually retested to guarantee maximum performance.

Thousands of satisfied customers, including ...

We're Here To Help.
