201-3130 Circuit Track Kit
  • Everything you need to repair damaged circuits and conductors. 19 separate items, more than 50 pieces.

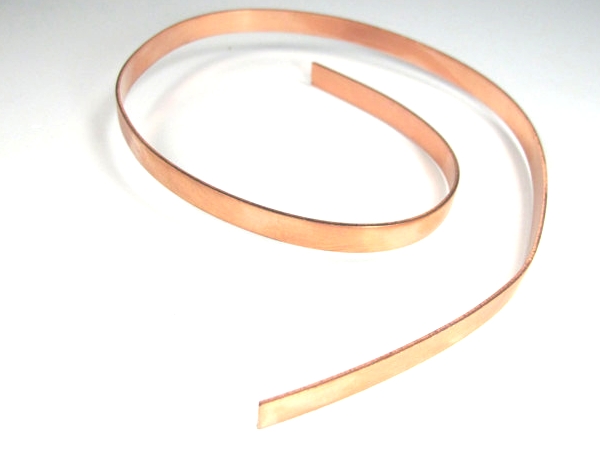

  • The kit includes four sizes of Circuit Tracks. These rectangular shaped conductors are made of pure copper ribbon and closely conform to the original conductor dimensions.

  • Bend the Circuit Track as needed to match the shape of the missing circuit. Circuit Tracks will match the original undamaged conductor trace dimensions

  • The kit includes high-strength Circuit Bond epoxy and Color Agents for solder mask or base board repair.

  • Circuit Bond is a clear, low viscosity, superior strength epoxy, precisely measured out into two-compartment plastic packages so there's no measuring.

  • Use the epoxy to repair burns and other surface defects. Use the Color Agents to match the epoxy color with the surrounding surface.

  • All the tools and materials are neatly arranged in a conductive, ESD safe carrying case.

  • All tools and materials conform to IPC 7711/7721 Rework, Repair and Modification of Electronics Assemblies guidelines.

Features
Everything you need to repair damaged circuits and conductors.
Circuit Tracks can form to any conductor pattern.
Designed to meet IPC recommended guidelines.
19 separate items, more than 50 pieces.
Packaged in a rugged, ESD safe conductive case.

Description
video
VIDEO
It's now easier than ever to repair damaged circuits. Circuit Tracks are rectangular shaped conductors made of 99.9% pure CDA 11000 copper.

These rectangular ribbons closely conform to the original conductor dimensions. The replacement Circuit Track is bonded in place using prepackaged epoxy included in the kit.

This kit is a great time and labor-saver and an easy solution to repairing missing or damaged conductor traces and circuits.
Operating Instructions
Ordering
Part No. Item Price Order
201-3130 Circuit Track Kit $299.00 Each
201-3132 Circuit Track Refill Kit $149.00 Each
Harmonize Code: 7408.19.0000

To order click the "Order" button and follow the instructions. You may also order from distributors around the world.
Circuit Track Kit Includes
Qty Part No. / Item Price Order
1
115-3136 Abrader
Mild abrasive for removing oxides and contaminates from conductive surfaces.
$7.95 Each
Pkg/5
235-1000-5 Alcohol Swab
Self-saturating Isopropyl alcohol swab. Squeeze handle to release alcohol.
$4.95 Pkg/5
4
115-3302 Circuit Bond Packs
Clear, superior strength epoxy in two-compartment plastic packages
$12.95 Each
1
115-5205 Circuit Track, .002" x .005"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
1
115-5208 Circuit Track, .002" x .008"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
1
115-5210 Circuit Track, .002" x .010"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
1
115-5315 Circuit Track, .003" x .015"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
1
115-5520 Circuit Track, .005" x .020"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
1
115-5530 Circuit Track, .005" x .030"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
Pkg/5
235-2106-5 Cleaning Brushes
Disposable brushes for use with solvents for cleaning and application of coatings.
$3.95 Pkg/5
Pkg/5
235-2102-5 Foam Swab
Ideal for absorbing cleaning solvents, and applying color agents and epoxies.
$49.50 Pkg/100
1
235-3050 High Temp Tape Discs
High temperature polyimide tape discs, .50" diameter.
$5.95 Pkg/60
1
355-0614 Knife with #16 Blades
A must-have tool for precise cutting, scraping and trimming.
$9.95 Each
1
115-3115 Measuring Microscope Pen, 25X
Pocket pen microscope with measuring reticle.
$29.00 Each
Pkg/5
355-3102-5 Micro Probes
Use to dispense a minute amount of adhesive and for micro-positioning of small objects.
$4.95 Pkg/5
Pkg/5
115-3315-5 Mixing Picks
Unique mixing sticks have a paddle shape on one and sharp pick on the opposite end.
$9.50 Pkg/100
5
115-3312 Plastic Cup
Small disposable cup for mixing epoxies and holding small items.
$9.50 Pkg/100
1
335-5188 Tweezer, Crossover
Self locking stainless steel tweezers provide hands-free clamping force.
$9.95 Each
1
335-5185 Tweezer, Point Tip
Fine point tweezers for precision work.
$9.95 Each
Optional and Related Items
Part No. / Item Price Order
115-5204 Circuit Track, .002" x .004"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
115-5206 Circuit Track, .002" x .006"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
115-5312 Circuit Track, .003" x .012"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
Applicable Safety Data Sheets
Alcohol Swab
Circuit Bond
Color Agent
Reference Procedures
1.0 Foreword
2.0 Basic Procedures
2.2 Cleaning
2.4.2 Coating Replacement, Conformal Coating, Encapsulant
2.7 Epoxy Mixing and Handling
3.0 Base Board Procedures
4.2.1 Conductor Repair, Foil Jumper, Epoxy Method
4.2.2 Conductor Repair, Foil Jumper, Film Adhesive Method
