525-2001 Circuit Frame Bundle

This package includes four popular Circuit Frames for surface mount pad and conductor repair.

These Circuit Frames have a dry-film adhesive backing, making repairing easy, fast, and highly reliable.

This reliable IPC-recommended procedure meets the highest conformance level for this type of repair. For over 30 years, Circuit Frames have been used by thousands of commercial, medical, and military manufacturers around the globe.

Circuit Frames are 2.25" x 1.50". Images may be shown larger than the actual size. Includes the following. All are bright tin-plated.
525-2101 Circuit Frame, Assortment, Small

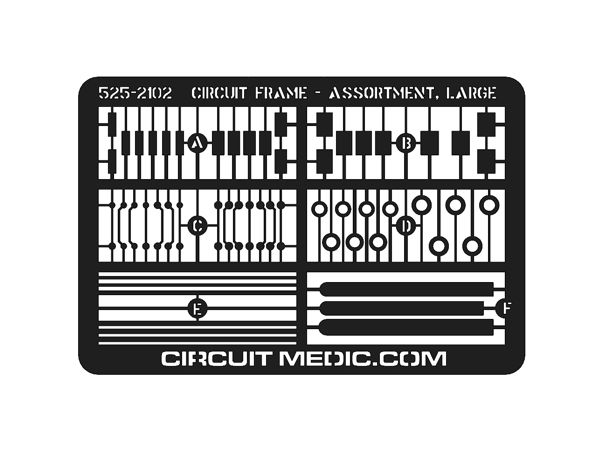

525-2102 Circuit Frame, Assortment, Large
525-2301 Circuit Frame, Conductors

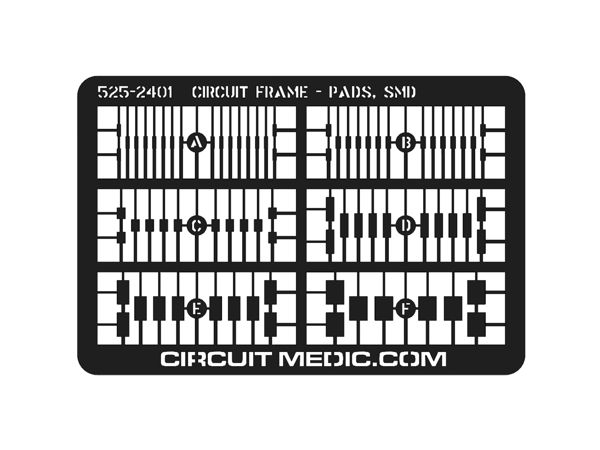

525-2401 Circuit Frame, SMD Pads
This Circuit Frame Bundle will be available starting April 1, 2023
  • Includes 525-2101 Circuit Frame, Assortment, Small, Bright Tin Plated

  • Includes 525-2102 Circuit Frame, Assortment, Large, Bright Tin Plated

  • Includes 525-2301 Circuit Frame, Conductors, Bright Tin Plated

  • Includes 525-2401 Circuit Frame, SMD Pads, Bright Tin Plated

  • Use the Circuit Frames to replace lifted and damaged surface mount and BGA pads. The repaired pad will meet the highest IPC guidelines.

  • Use the Circuit Frames to replace lifted and damaged lands. The repaired land will meet the highest IPC guidelines.

Ordering
Part No. Description Price Qty / Order
525-2001 Circuit Frame Bundle $199.00
Order direct or from a distributor. Harmonize Code: 7410.21.6000
Freight, duties, and value added taxes may increase prices for products outside USA.
