201-6100 Gold Contact Plating Kit

  • Here's the perfect kit for replating solder-contaminated gold edge contacts.

Here's the perfect kit for replating solder-contaminated or damaged gold edge contacts or contacts that don't meet the minimum thickness specification.

The kit includes a DC power supply and all the tools and materials needed for gold edge contact plating. The kit also includes 1 oz containers of Gold, Nickel, and Electroclean plating solutions

Plating probes included with the kit use pre-wrapped, screw-on plating anodes to end the common problems associated with loosely wrapped cotton anodes.

Features
Specifically designed and packaged for gold edge contact plating.
Plating probes use pre-wrapped plating anodes.
Industry approved and conforms to IPC guidelines.
Variable power supply provides accurate voltage and current.
Kit includes Gold, Nickel and Electroclean plating solutions.
Shipping by FedEx and UPS only.
Ordering
Part No. Description Price Qty / Order
201-6100 Gold Contact Plating Kit, 120 VAC $1299.00 Each
201-6102 Gold Contact Plating Kit, 230 VAC $1299.00 Each
Order direct or from a distributor. Harmonize Code:
Freight, duties, and value added taxes may increase prices for products outside USA.
Gold Contact Plating Kit Includes
Qty Part No. / Item Price Qty / Order
1
115-3136 Abrader
Mild abrasive for removing oxides and contaminants.
$7.95 Each
2 Pkg/5
115-3312-5 Plastic Cup
Small disposable cup for mixing epoxies and holding small items.
$5.95 Pkg/5
Pkg/10

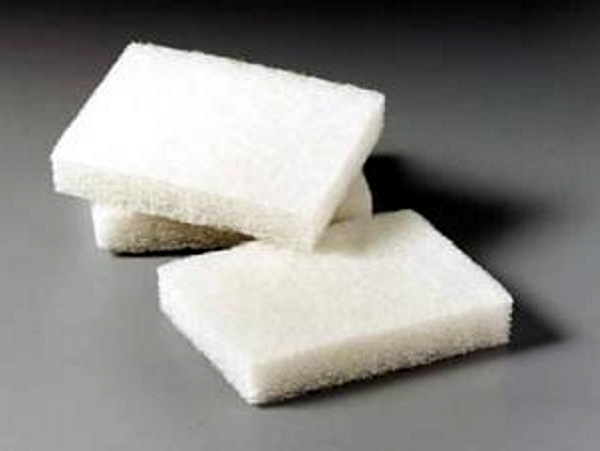

115-3702 Abrasive Pads
Light duty abrasive scrubbing pads to remove contamination and blend surfaces.
$6.95 Pkg/10
3
115-3721 Plating Anode, Standard
Pre-wrapped, screw-on plating anode designed for circuit board plating.
$59.00 Each
3
115-3722 Plating Anode, Small
Small plating anode designed for circuit board plating.
$49.00 Each
Pkg/10
115-3733 Plating Anode Tip
Absorbent foam tip used with small plating anode.
$12.95 Pkg/10
1
115-3742 Plating Cables, Black/Red
Standard test lead cables with stackable banana plugs.
$29.95 Pair
1
115-3754 Plating Probe, Black
Nylon plating probe used for ground connection during plating.
$52.95 Each
3
115-3755 Plating Probe, Red
Nylon plating probe for use with plating anodes.
$52.95 Each
1
115-3764 Rinse Tray
Polypropylene container to catch runoff plating solutions.
$29.00 Each
1
115-3778 Buss Wire, 30 AWG
Used to create an electrical connection across conductive surfaces during plating. Length 36 inches.
$9.95 Each
1
115-3782 Rinse Bottle
4 ounce rinse bottle made from low-density polyethylene.
$14.95 Each
1
115-3821 Plating Solution, Gold, 1 oz (.03 liter)
Electroplating solution for gold surfaces and gold edge contacts.
$349.00 Each
1
115-3831 Plating Solution, Nickel, 1 oz (.03 liter)
Electroplating solution for nickel surfaces and nickel edge contacts.
$95.00 Each
1
115-3841 Plating Solution, Electroclean, 1 oz (.03 liter)
Solution for preparation prior to electroplating.
$95.00 Each
Pkg/5
235-2102-5 Foam Swab, Small
Swabs for use with solvents and application of color agents and epoxies.
$9.50 Pkg/5
Pkg/5
235-2108-5 Foam Swab, Large
Swabs for use with solvents and application of color agents and epoxies.
$13.95 Pkg/5
1
245-1102 Conductive Pen
Pen dispenser for creating conductive silver traces.
$79.95 Each
1
250-1201 Coating Remover Pen
For precise removal of silicone, acrylic and urethane coatings from circuit boards.
$44.95 Each
1
290-3050 Tape, Plating and Masking
Ideal for masking during plating, coating removal and microblasting.
$14.00 Each
1
290-7250 Tape, Peel Test
This tape is specifically designed to test plating adhesion.
$29.95 Each
1
355-0614 Knife with #16 Blades
A must-have tool for precise cutting, scraping and trimming.
$9.95 Each
1
510-2408 Alligator Clip
Use to provide ground connection.
$1.95 Each

Power Options
Qty Part No. / Item Price Qty / Order
1
115-1714 Power Supply
Multi Voltage Regulated Power Supply
$99.00 Each
1
115-1716 Power Supply
Multi Voltage Regulated Power Supply
$99.00 Each
* 201-6100 Gold Contact Plating Kit, 120 VAC includes 115-1716 Power Supply, 120 VAC
* 201-6100 Gold Contact Plating Kit, 230 VAC includes 115-1716 Power Supply, 230 VAC
Optional Items
Part No. / Item Price Order
115-3821 Plating Solution, Gold, 1 oz (.03 liter)
Electroplating solution for gold surfaces and gold edge contacts.
$349.00 Each
115-3824 Plating Solution, Gold, 4 oz (.12 liter)
Electroplating solution for gold surfaces and gold edge contacts.
$1149.00 Each
115-3831 Plating Solution, Nickel, 1 oz (.03 liter)
Electroplating solution for nickel surfaces and nickel edge contacts.
$95.00 Each
115-3834 Plating Solution, Nickel, 4 oz (.12 liter)
Electroplating solution for nickel surfaces and nickel edge contacts.
$195.00 Each
115-3841 Plating Solution, Electroclean, 1 oz (.03 liter)
Solution for preparation prior to electroplating.
$95.00 Each
115-3844 Plating Solution, Electroclean, 4 oz (.12 liter)
Solution for preparation prior to electroplating.
$195.00 Each
Instructions and Safety Data Sheets
Instructions 201-6100
Instructions 201-6102
Electroclean Plating Solution
Gold Plating Solution
Nickel Plating Solution
Reference Guide Procedures
Number / Title
4.6.3 Edge Contact Repair, Plating
