110-5202 Eyelet Press
  • This rugged, heavy duty press precisely forms eyelets in circuit boards for repair or assembly.

Features
Heavy duty construction to properly form eyelets per IPC guidelines.
Includes Setting Tools to properly form a large range of eyelet sizes.

Description
This rugged, heavy duty press precisely forms eyelets in circuit boards for repair or assembly. The unit has a 6.50" (16.50 cm) throat depth to accommodate 12" wide circuit boards.

The heavy duty construction ensures eyelets are forming per IPC guidelines. Includes two #110-3120 Setting Tool, Small and two #110-3124 Setting Tool, Large to form and flat set all the eyelets listed below.

The CircuitMedic Eyelet Press will deliver years of maintenance-free reliable production.

Setting Tool / Eyelet Forming Process
Eyelet
First, apply firm even pressure using the flare end of the setting tool to flare the eyelet barrel.
Eyelet
Next, apply firm even pressure using the opposite flat end of the setting tool to flatten the eyelet barrel.
Available Eyelets - Eyelets Not Included
Part No. Flange Metal ID OD LUF FD Price Order Setting Tool * Order
115-7366-25 Flat Copper .036" .046" .093" .076" $34.95/Pkg 25
115-3120 *
115-7206-25 Flat Copper .020" .030" .094" .046" $34.95/Pkg 25
115-3120 *
115-7209-25 Flat Copper .020" .030" .120" .046" $34.95/Pkg 25
115-3120 *
115-7306-25 Flat Brass .030" .040" .093" .060" $34.95/Pkg 25
115-3120 *
115-7336-25 Flat Brass .033" .047" .093" .080" $34.95/Pkg 25
115-3120 *
115-7339-25 Flat Copper .033" .047" .125" .080" $34.95/Pkg 25
115-3120 *
115-7353-25 Flat Copper .035" .047" .062" .080" $34.95/Pkg 25
115-3120 *
115-7453-25 Flat Copper .045" .059" .062" .090" $34.95/Pkg 25
115-3120 *
115-7456-25 Flat Copper .045" .059" .090" .090" $34.95/Pkg 25
115-3120 *
115-7459-25 Flat Copper .045" .059" .125" .090" $34.95/Pkg 25
115-3120 *
115-7576-25 Flat Copper .057" .067" .095" .111" $34.95/Pkg 25
115-3126 *
115-7676-25 Flat Copper .067" .078" .097" .130" $34.95/Pkg 25
115-3126 *
115-8736-25 Funnel Brass .073" .089" .093" .125" $34.95/Pkg 25
115-3126 *

* Two setting tools required to set eyelets.

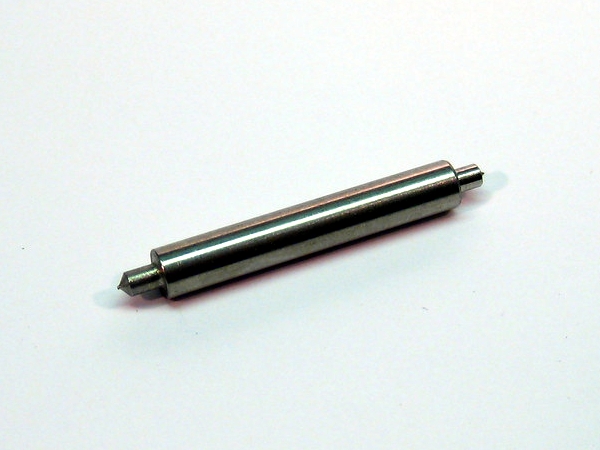

110-3120 Setting Tool, Small $17.95 Each
110-3124 Setting Tool, Large $29.95 Each
Operating Instructions
Specifications
Throat Depth6.50" (16.50 cm)
Minimum Throat Opening1.00" (2.54 cm)
Tooling Shank Size.375" (9.52 mm) Diameter
Weight28 lbs. (13 kg.)
Ordering
Part No. Item Price Order
110-5202 Eyelet Press $1795.00 Each
Harmonize Code: 8479.89.9920

To order click the "Order" button and follow the instructions. You may also order from distributors around the world.
Reference Procedures
5.1 Plated Hole Repair, No Inner Layer Connection
5.2 Plated Hole Repair, Double Wall Method
5.3 Plated Hole Repair, Inner Layer Connection
Questions?
Call 978-374-5000 or submit your question using the form below.

Your Name


Your Company


Your E-mail


Your Country


Your Phone


Questions
