201-3110 Base Board Repair Kit

This unique kit includes everything you need for base board repair to meet IPC guidelines.
The kit includes clear, low viscosity, superior strength epoxy, precisely measured out into two-compartment packages.
The Base Board Repair Kit is packaged in a rugged, ESD safe conductive case.

Features
■	Versatile, complete - includes everything you need for base board repair.
■	Meets IPC recommended guidelines.
■	High strength, high temperature epoxy withstands demanding physical environments.
■	Color agents permit matching of solder mask and base board colors.

Description

Yes, circuit boards do on occasion get damaged. They get burned, scratched, cracked, and beat up.

When your valuable circuit boards are damaged, they can be repaired, and repaired reliably.

This kit includes epoxies, color agents and many of the delicate tools needed to repair damage to the base board material, solder mask and coatings, all packaged in a rugged ESD safe carry case.

Operating Instructions

Circuit Bond Specifications
Packaging	2 gram prepackaged containers
Mix ratio	4 parts resin to 1 part hardener
Color	Clear, transparent
Pot life	30 minutes
Cure cycle	24 hours at room temperature or 3 hours @ 165°F (75°C)
Viscosity (after mixing)	1900 cps @ 77°F (25°C)
Operating temperature range	-76°F to 284°F (-60°C to 140°C)
Hardness	88 Shore D
Dielectric strength	410 volts/mil
Shelf Life	6 months minimum

Ordering

Part No.	Item	Price	Order
201-3110	Base Board Repair Kit	$199.00 Each

Harmonize Code: 8205.59.0000

To order click the "Order" button and follow the instructions. You may also order from distributors around the world.

Base Board Repair Kit Includes

Qty	Part No. / Item	Price	Order
Pkg/5	235-1000-5 Alcohol Swab Self-saturating Isopropyl alcohol swab. Squeeze handle to release alcohol.	$4.95 Pkg/5
4	115-3302 Circuit Bond Packs Clear, superior strength epoxy in two-compartment plastic packages	$12.95 Each
Pkg/5	235-2106-5 Cleaning Brushes Disposable brushes for use with solvents for cleaning and application of coatings.	$3.95 Pkg/5
1	115-9348 Color Agent, Green Use to tint epoxy for solder mask and base board repair.	$19.95 Each
1	115-9358 Color Agent, Light Green Use to tint epoxy for solder mask and base board repair.	$19.95 Each
Pkg/5	235-2102-5 Foam Swab Ideal for absorbing cleaning solvents, and applying color agents and epoxies.	$49.50 Pkg/100

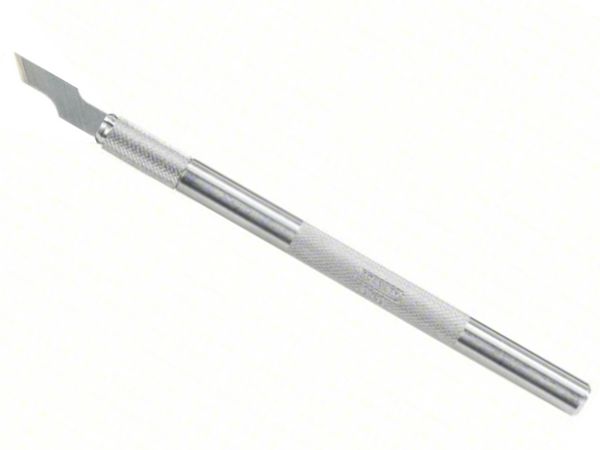

1	355-0614 Knife with #16 Blades A must-have tool for precise cutting, scraping and trimming.	$9.95 Each

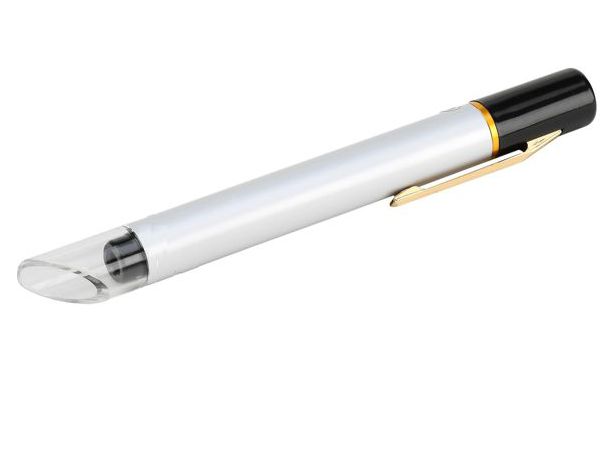

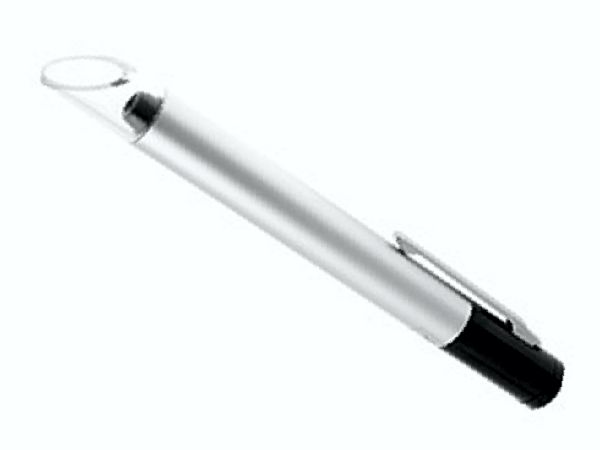

1	115-3115 Measuring Microscope Pen, 25X Pocket pen microscope with measuring reticle.	$29.00 Each
1	355-3102-5 Micro Probes Use to dispense a minute amount of adhesive and for micro-positioning of small objects.	$4.95 Pkg/5
Pkg/5	115-3315-5 Mixing Picks Unique mixing sticks have a paddle shape on one and sharp pick on the opposite end.	$9.50 Pkg/100
5	115-3312 Plastic Cup Small disposable cup for mixing epoxies and holding small items.	$9.50 Pkg/100

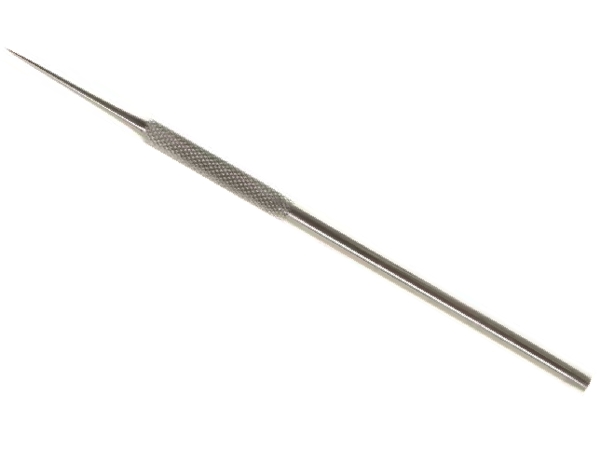

1	335-3195 Probe Sharp dental style probe for manipulating small objects and removal of small debris.	$9.95 Each

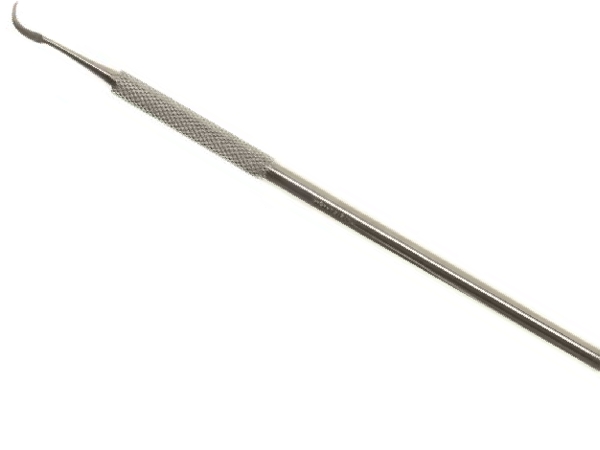

1	335-3197 Scraper Hardened stainless steel tip for scraping solder mask and removing defects.	$9.95 Each

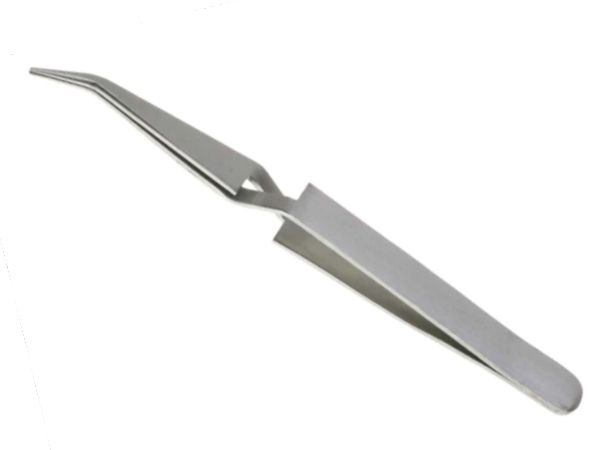

1	335-5188 Tweezer, Crossover Self locking stainless steel tweezers provide hands-free clamping force.	$9.95 Each

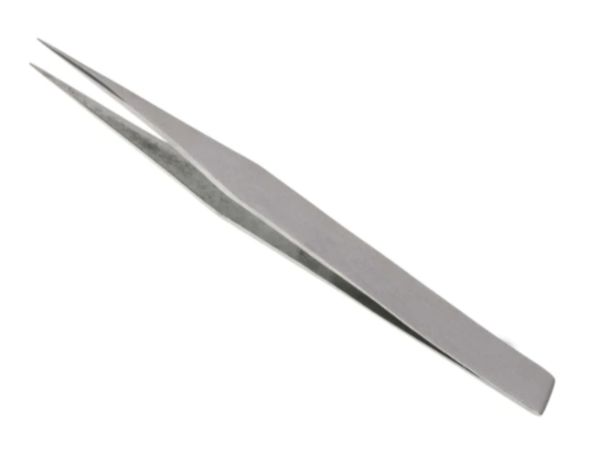

1	335-5185 Tweezer, Point Tip Fine point tweezers for precision work.	$9.95 Each
