201-3140 Plated Hole Repair Kit
  • This kit includes all the tools and materials you need to repair damaged plated through holes in circuit boards.

Features
Eyelets meet IPC Guidelines.
Versatile - has everything you need to repair plated holes in a wide variety of sizes.
Standard eyelets are RoHS compliant.

Description
video
VIDEO
This kit includes all the tools and materials you need to repair damaged plated through holes in circuit boards.

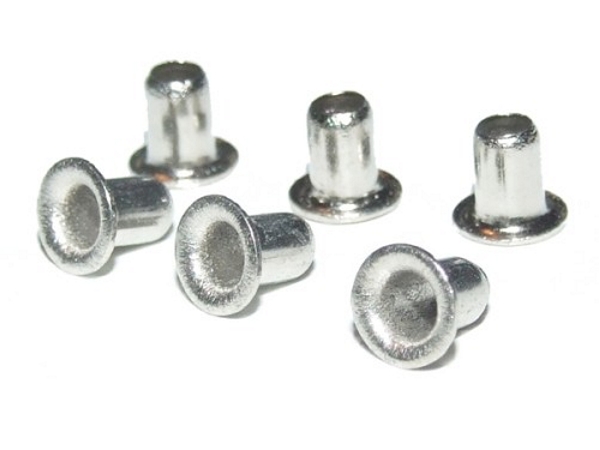

The kit includes a 8 packages of different eyelet sizes to handle a wide range of common plated through hole repairs.

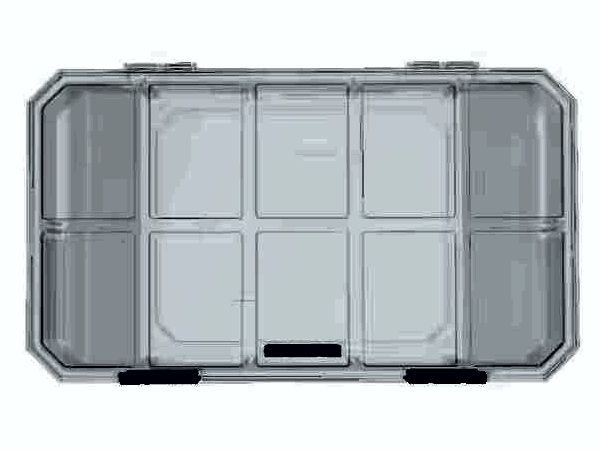

The kit also includes carbide ball mills for drilling, and setting tools to form the eyelets conforming to IPC guidelines all packaged in a rugged ESD safe carry case.

#201-3142 Plated Hole Refill Kit includes one package each of the eyelets listed in the table below.

SPECIAL OFFER

Order a Plated Hole Repair Kit by September 30 and Save $30.00.

Regular Price $249.00 - Special Offer Price $219.00

Order today, this offer expires August 31, 2018.
Operating Instructions
Ordering
Part No. Item Price Order
201-3140 Plated Hole Repair Kit $219.00 Each
201-3142 Plated Hole Refill Kit $79.00 Each
Harmonize Code: 7411.10.1000

To order click the "Order" button and follow the instructions. You may also order from distributors around the world.
Plated Hole Repair Kit Includes
Qty Part No. / Item Price Order
Pkg/5
235-1000-5 Alcohol Swab
Self-saturating Isopropyl alcohol swab. Squeeze handle to release alcohol.
$4.95 Pkg/5
1

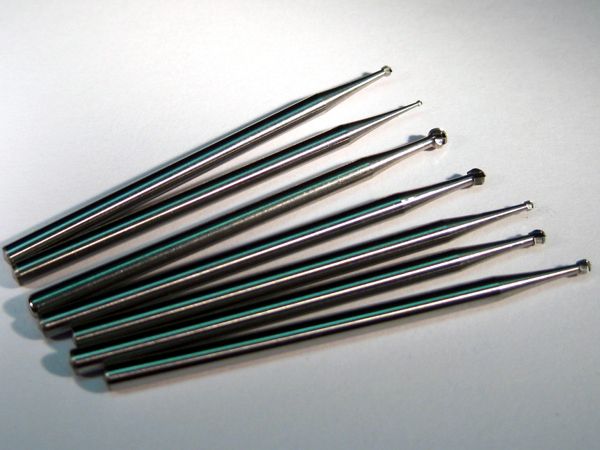

115-6000 Ball Mill Pack - Sizes #1/2 - #7
Pack includes 8 carbide ball mills for precision drilling and grinding.
$31.95 Pkg/8
Pkg/25

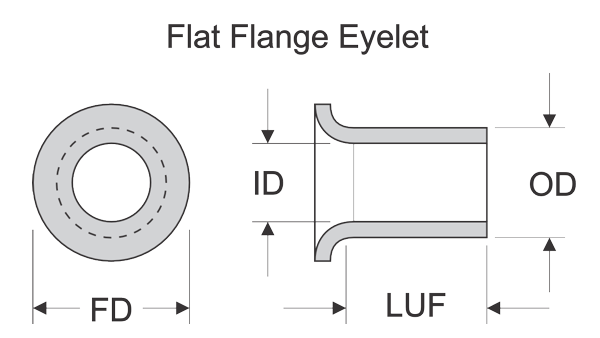

115-7206-25 Eyelet, Flat Flange
Copper Eyelet - ID .020" OD .030" Length .094" Flange .046"
$29.00 Pkg/25
Pkg/25
115-7306-25 Eyelet, Flat Flange
Brass Eyelet - ID .030" OD .040" Length .093" Flange .060"
$29.00 Pkg/25
Pkg/25
115-7336-25 Eyelet, Flat Flange
Brass Eyelet - ID .033" OD .047" Length .093" Flange .080"
$29.00 Pkg/25
Pkg/25
115-7366-25 Eyelet, Flat Flange
Copper Eyelet - ID .036" OD .046" Length .093" Flange .076"
$29.00 Pkg/25
Pkg/25
115-7456-25 Eyelet, Flat Flange
Copper Eyelet - ID .045" OD .059" Length .090" Flange .090"
$29.00 Pkg/25
Pkg/25
115-7576-25 Eyelet, Flat Flange
Copper Eyelet - ID .057" OD .067" Length .095" Flange .111"
$29.00 Pkg/25
Pkg/25
115-7676-25 Eyelet, Flat Flange
Copper Eyelet - ID .067" OD .078" Length .097" Flange .130"
$29.00 Pkg/25
Pkg/25

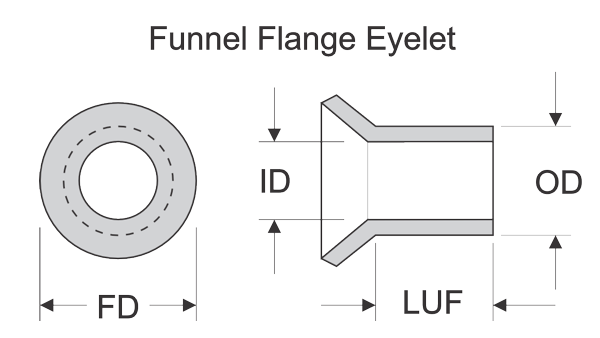

115-8736-25 Eyelet, Funnel Flange
Brass Eyelet - ID .073" OD .089" Length .093" Flange .125"
$29.00 Pkg/25
1
115-3115 Measuring Microscope Pen, 25X
Pocket pen microscope with measuring reticle.
$29.00 Each
5
115-3312 Plastic Cup
Small disposable cup for mixing epoxies and holding small items.
$9.50 Pkg/100
2
115-3120 Setting Tool
Used to properly form eyelets used to repair plated holes in circuit boards.
$16.95 each
1

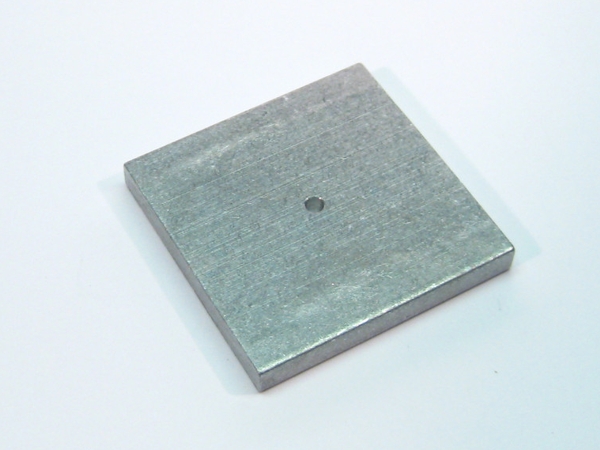

115-3122 Tool Base
Support base for Setting Tool when forming eyelets for plated hole repair.
$9.95 Each
1

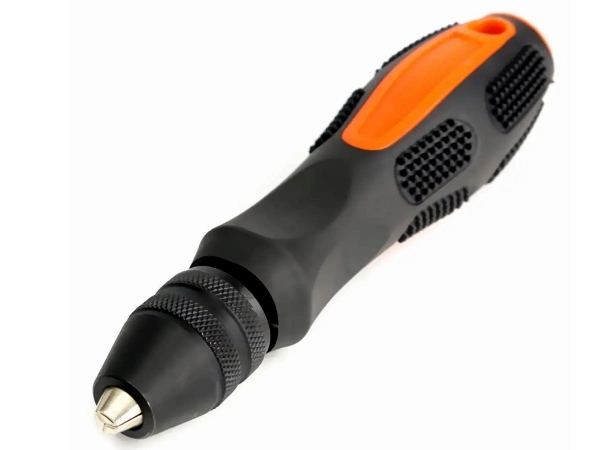

115-3139 Tool Grip
Handy tool has vise jaws to grip small items.
$29.00 Each
1

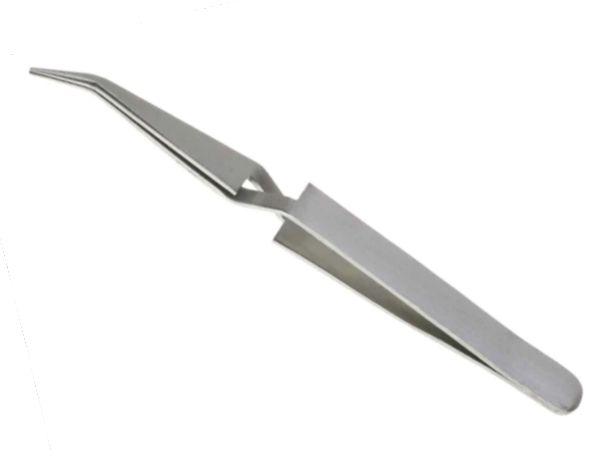

335-5188 Tweezer, Crossover
Self locking stainless steel tweezers provide hands-free clamping force.
$9.95 Each
1

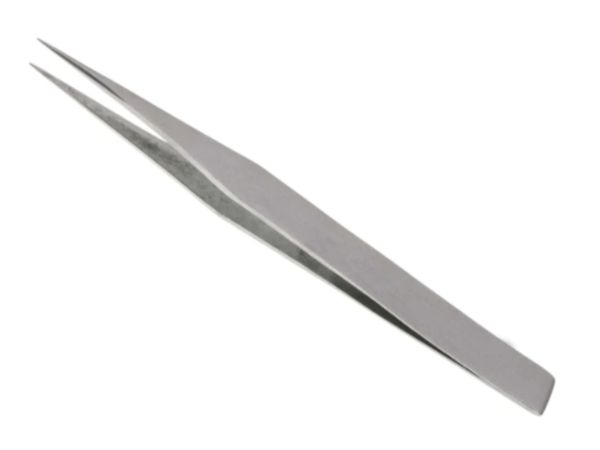

335-5185 Tweezer, Point Tip
Fine point tweezers for precision work.
$9.95 Each
Reference Procedures
1.0 Foreword
2.0 Basic Procedures
2.2 Cleaning
3.0 Base Board Procedures
5.1 Plated Hole Repair, No Inner Layer Connection
5.2 Plated Hole Repair, Double Wall Method
5.3 Plated Hole Repair, Inner Layer Connection
