201-2400 Master Repair Kit

The Master Repair Kit includes dry film, adhesive-backed circuit frames for the repair of lands, and surface mount pads.

Includes a temperature-controlled Bonding Iron and Bonding Tips to delivers the optimal heat required for curing the adhesive bonding film on the backside of the replacement lands and surface mount pads.

The kit also Circuit Tracks for repair damaged conductors, adhesives, and color agents for solder mask or baseboard repair all packaged in a convenient carrying case.

This mid-priced kit includes everything you need to repair damage to assembled circuit boards, except for plated hole repair.
  • The Master Repair Kit includes dry film, epoxy-backed circuit frames for repair of lands and surface mount pads.

  • The kit includes three Circuit Frames. Circuit Frames have a dry film adhesive backing so messy liquid adhesives are not needed for bonding.

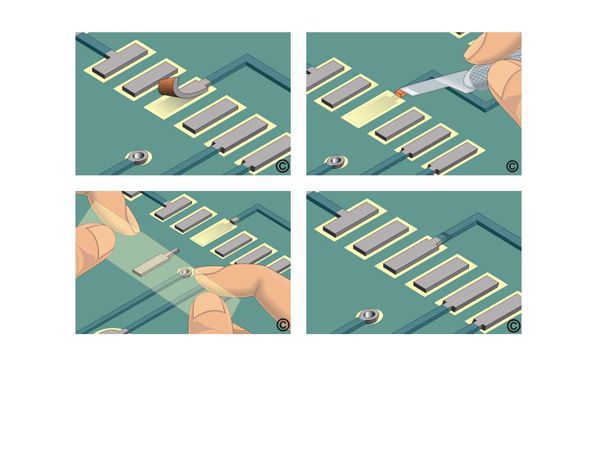

  • Use the Circuit Frames to replace lifted and damaged surface mount and BGA pads. The repaired pad will meet the highest IPC guidelines.

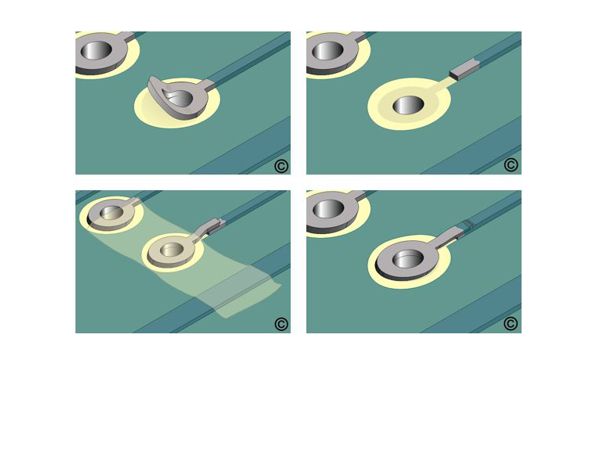

  • Use the Circuit Frames to replace lifted and damaged lands. The repaired land will meet the highest IPC guidelines.

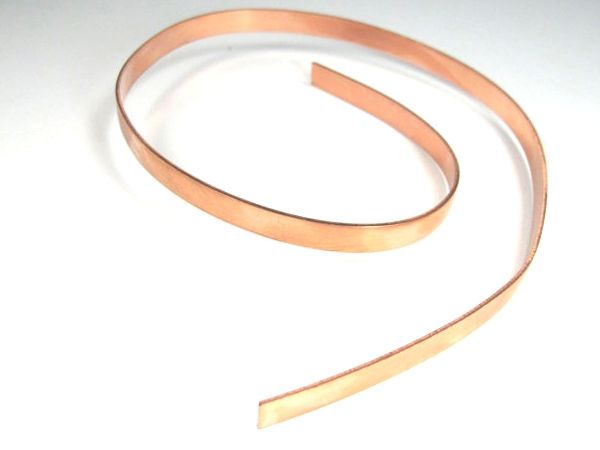

  • The kit includes four sizes of Circuit Tracks. These rectangular shaped conductors are made of pure copper ribbon and closely conform to the original conductor dimensions.

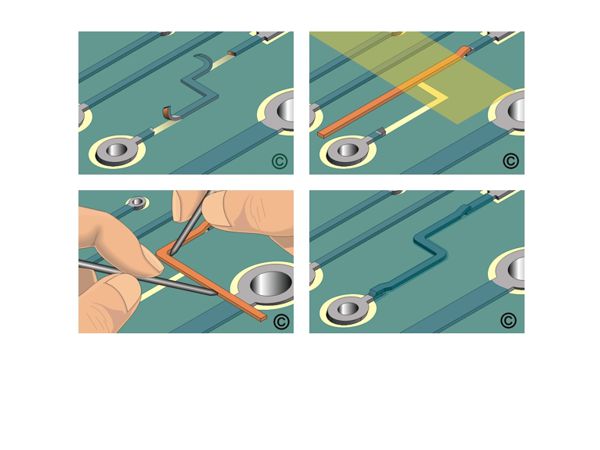

  • Bend the Circuit Track as needed to match the shape of the missing circuit. Circuit Tracks will match the original undamaged conductor trace dimensions.

  • The kit includes high-strength Circuit Bond epoxy and Color Agents for solder mask or base board repair.

  • Circuit Bond is a clear, low viscosity, superior strength epoxy, precisely measured out into two-compartment plastic packages so there's no measuring.

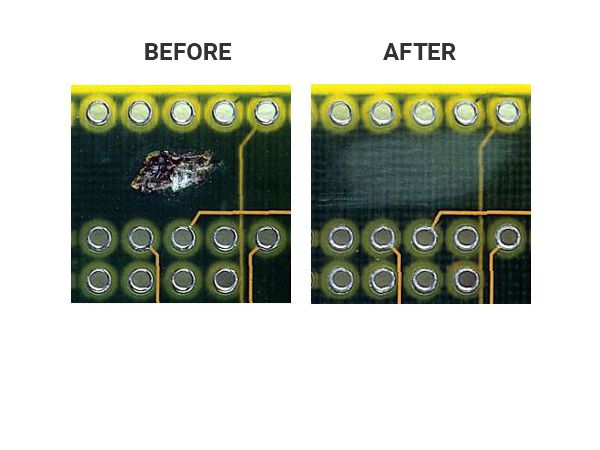

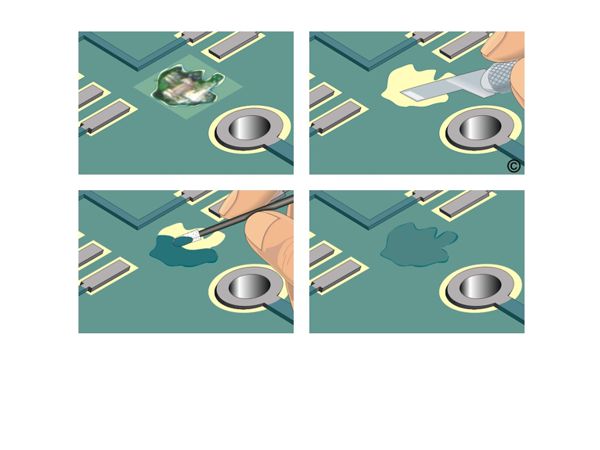

  • Use the epoxy to repair burns and other surface defects. Use the Color Agents to match the epoxy color with the surrounding surface.

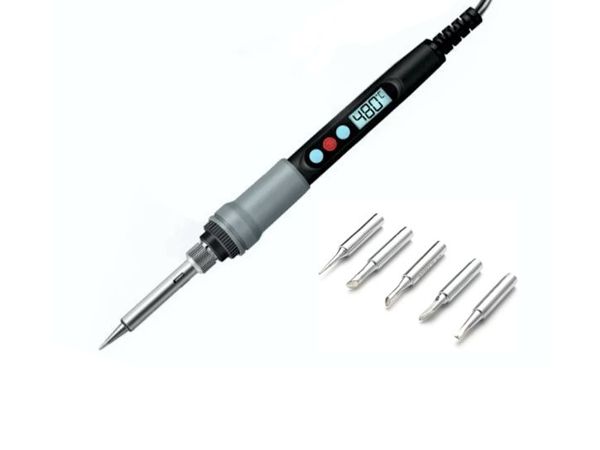

  • Includes a temperature-controlled Bonding Iron, and Bonding Tips to delivers the optimal heat required for curing the adhesive bonding film on the backside of the replacement lands and pads.

  • All the tools and materials are neatly arranged in a conductive, ESD safe carrying case.

  • All tools and materials conform to IPC 7711/7721 Rework, Repair and Modification of Electronics Assemblies guidelines.

Features
Includes dry film, adhesive-backed replacement circuits that do not use messy liquid epoxy for bonding.
Includes a temperature controlled Bonding Iron and Bonding Tips.
Includes Circuit Tracks to repair damaged circuits.
Includes adhesives and color agents for solder mask or base board repair.
All the tools and materials are neatly arranged in a conductive, ESD safe carrying case.
Tools and materials conform to IPC guidelines.
Every item is prime quality, time-tested, to meet high standards.
Does not include eyelets and setting tools for plated through hole repair.
Ordering
Part No. Description Price Qty / Order
201-2400 Master Repair Kit, 120 VAC $599.00 Each
201-2402 Master Repair Kit, 230 VAC $619.00 Each
Order direct or from a distributor. Harmonize Code: 8205.59.0000
Freight, duties, and value added taxes may increase prices for products outside USA.
Master Repair Kit Includes
Qty Part No. / Item Price Qty / Order
1
Circuit Frame
CBLANKAS Circuit Frame
Blank - Bright Tin
$47.00 Each
1
Circuit Frame
CFV002AS Circuit Frame
Variety - Bright Tin
$47.00 Each
1
Circuit Frame
CFV003AS Circuit Frame
Variety - Bright Tin
$47.00 Each
1
115-2706 Bonding Film
Dry film adhesive used to bond lifted lands, pads and conductors.
$16.50 Each
1
115-2801 Bonding Tip, Tapered
Tip used to bond replacement conductors to circuit boards for repair.
$45.00 Each
1
115-2802 Bonding Tip, .080" (2.03 mm) Diameter
Tip used to bond replacement conductors to circuit boards for repair.
$45.00 Each
1
115-2803 Bonding Tip, .120" (3.05 mm) Diameter
Tip used to bond replacement conductors to circuit boards for repair.
$45.00 Each
1
115-3108PCB Circuit Board
Circuit board perfect for practice work.
$16.95 Each
1
115-3115 Measuring Microscope Pen, 25X
Pocket pen microscope with measuring reticle.
$29.00 Each
1
115-3136 Abrader
Mild abrasive for removing oxides and contaminates from conductive surfaces.
$7.95 Each
Pkg/5

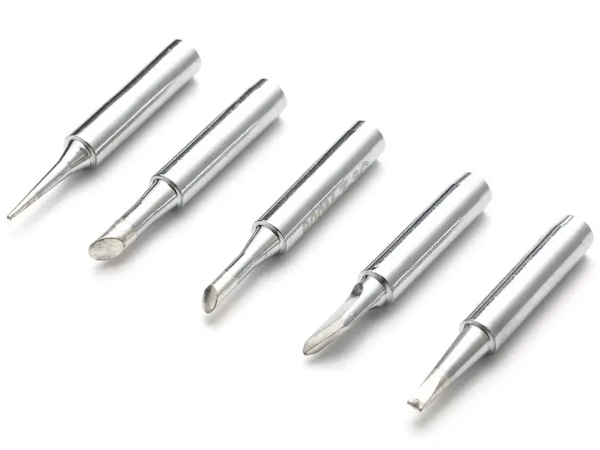

115-3206 Soldering Tips
Soldering tips, package or 5 assorted tips.
$19.95/pkg 5
1*

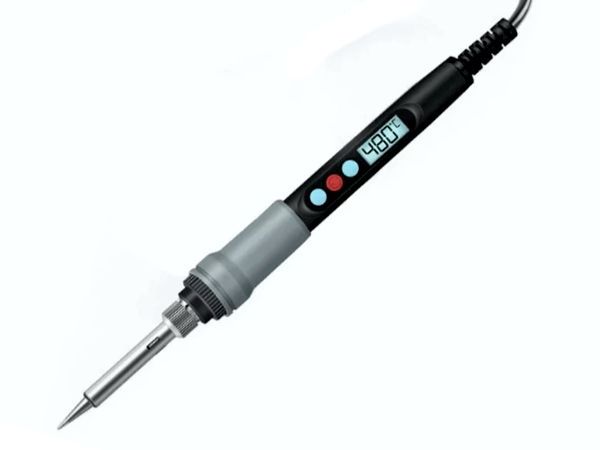

115-3210 Bonding Iron, 120 VAC
Delivers the optimal heat for curing adhesive bonding film.
$59.00 Each
4
115-3302 Circuit Bond Epoxy
Clear, superior strength epoxy in two-compartment plastic packages.
Shelf life 6 months, no refund or exchange.
$14.95 Each
5
115-3312 Plastic Cup
Small disposable cup for mixing epoxies and holding small items.
$9.50 Pkg/100
Pkg/5
115-3315-5 Mixing Picks
Unique mixing sticks have a paddle shape on one and sharp pick on the opposite end.
$9.50 Pkg/100
1
115-5206 Circuit Track, .002" x .006"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
1
115-5210 Circuit Track, .002" x .010"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
1
115-5315 Circuit Track, .003" x .015"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
1
115-5530 Circuit Track, .005" x .030"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
1
115-9348 Color Agent, Green
Use to tint epoxy for solder mask and base board repair.
$21.95 Each
1
115-9358 Color Agent, Light Green
Use to tint epoxy for solder mask and base board repair.
$21.95 Each
Pkg/5
235-2102-5 Foam Swab
Ideal for absorbing cleaning solvents, and applying color agents and epoxies.
$49.50 Pkg/100
Pkg/25
235-2106-5 Cleaning Brushes
Disposable brushes for use with solvents for cleaning and application of coatings.
$3.95 Pkg/5
Pkg/5
235-2108-50 Foam Swab, Large
Ideal for absorbing cleaning solvents, and applying color agents and epoxies.
$39.95 Pkg/50
Pkg/126
235-3025 High Temp Tape Discs
High temperature polyimide tape discs, .25" diameter.
$5.95 Pkg/120
Pkg/60
235-3050 High Temp Tape Discs
High temperature polyimide tape discs, .50" diameter.
$5.95 Pkg/60
Pkg/5
355-3102-5 Micro Probes
Use to dispense a minute amount of adhesive and for micro-positioning of small objects.
$4.95 Pkg/5
1
335-3195 Probe
Sharp dental style probe for manipulating small objects and removal of small debris.
$9.95 Each
1
335-3196 Wire Guide
Use to form bends in wires and hold wires during soldering and bonding.
$9.95 Each
1
335-3197 Scraper
Hardened stainless steel tip for scraping solder mask and removing defects.
$9.95 Each
1
335-5185 Tweezer, Point Tip
Fine point tweezers for precision work.
$9.95 Each
1
335-5188 Tweezer, Crossover
Self locking stainless steel tweezers provide hands-free clamping force.
$9.95 Each
1
355-0614 Knife with #16 Blades
A must-have tool for precise cutting, scraping and trimming.
$9.95 Each
* Model 201-2402 Master Repair Kit, 230 VAC includes 115-3220 Bonding Iron, 220 VAC
Safety Data Sheets
Circuit Bond
Circuit Frame/Bonding Film
Color Agent
Instructions
INS1066 Master Repair Kit
INS1059 Bonding Tips
INS1063 Circuit Bond Epoxy
INS1060 Circuit Frames
INS1061 Circuit Tracks
INS1065 Color Agents
Reference Guide Procedures
Number / Title
1.0 Foreword
2.0 Basic Procedures
2.2 Cleaning
2.4.1 Coating Replacement, Solder Mask
2.7 Epoxy Mixing and Handling
3.0 Base Board Procedures
4.1.1 Lifted Conductor Repair, Epoxy Seal Method
4.1.2 Lifted Conductor Repair, Film Adhesive
4.2.1 Conductor Repair, Foil Jumper, Epoxy Method
4.2.2 Conductor Repair, Foil Jumper, Film Adhesive Method
4.4.1 Lifted Land Repair, Epoxy Seal
4.4.2 Lifted Land Repair, Film Adhesive
4.5.1 Land Repair, Epoxy Method
4.5.2 Land Repair, Film Adhesive
4.6.1 Edge Contact Repair, Adhesive Method
4.6.2 Edge Contact Repair, Film Adhesive
4.7.1 Surface Mount Pad Repair, Adhesive Method
4.7.2 Surface Mount Pad Repair, Film Adhesive
4.7.3 BGA Pad Repair, Film Adhesive
