Eyelets
Eyelets are brass or copper, electroplated with tin unless otherwise specified.

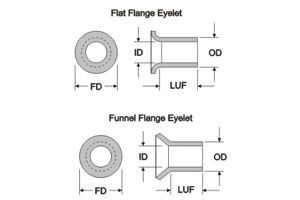

Eyelet Flat Eyelet Funnel

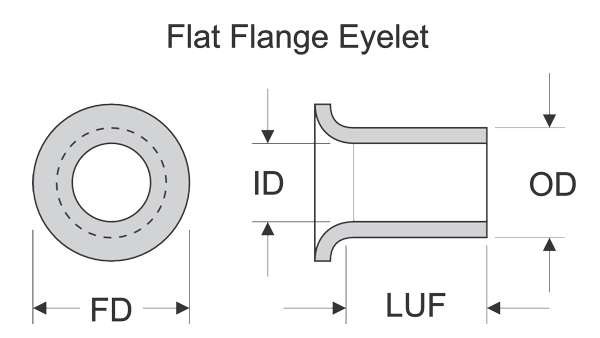

Eyelet Selection Criteria
ID - Inside Diameter.003" - .020" greater than the component lead diameter.
OD - Outside Diameter The clearance hole in the circuit board should be .001" - .005" greater than the outside diameter.
LUF - Length Under Flange The length of the flange should be .020" - .035" greater than the thickness of the circuit board.
FD - Flange Diameter The flange diameter should be small enough to prevent interference with adjacent pads or circuits.

Ordering Information
bullet   Tools and materials may be ordered from distributors around the world. See our Distributor List.
bullet   To order online click the "Order" button and follow the on screen instructions.

Related Items
110-5202 Eyelet Press
201-3140 Plated Hole Repair Kit

Eyelet Prices
All eyelets are $29.00/package of 25.

Part No. Type Metal ID OD LUF FD Order
115-7206-25 Eyelet, Flat Flange Copper .020"
.508 mm
.030"
.762 mm
.094"
2.388 mm
.046"
1.168 mm
115-7209-25 Eyelet, Flat Flange Copper .020"
.508 mm
.030"
.762 mm
.120"
3.048 mm
.046"
1.168 mm
115-7306-25 Eyelet, Flat Flange Brass .030"
.762 mm
.040"
1.016 mm
.093"
2.362 mm
.060"
1.524 mm
115-7336-25 Eyelet, Flat Flange Brass .033"
.838 mm
.047"
1.194 mm
.093"
2.362 mm
.080"
2.032 mm
115-7339-25 Eyelet, Flat Flange Copper .033"
.838 mm
.047"
1.194 mm
.125"
3.175 mm
.080"
2.032 mm
115-7353-25 Eyelet, Flat Flange Copper .035"
.889 mm
.047"
1.194 mm
.062"
1.575 mm)
.080"
2.032 mm
115-7366-25 Eyelet, Flat Flange Brass .036"
.914 mm
.046"
1.168 mm
.093"
2.362 mm
.076"
1.930 mm
115-7453-25 Eyelet, Flat Flange Copper .045"
1.143 mm
.059"
1.499 mm
.062"
1.575 mm
.090"
2.286 mm
115-7456-25 Eyelet, Flat Flange Copper .045"
1.143 mm
.059"
1.499 mm
.090"
2.286 mm
.090"
2.286 mm
115-7459-25 Eyelet, Flat Flange Copper .045"
1.143 mm
.059"
1.499 mm
.125"
3.175 mm
.090"
2.286 mm
115-7576-25 Eyelet, Flat Flange Copper .057"
1.448 mm
.067"
1.702 mm
.095"
2.413 mm
.111"
2.819 mm
115-7676-25 Eyelet, Flat Flange Copper .067"
1.702 mm
.078"
1.981 mm
.097"
2.464 mm
.130"
3.302 mm
115-8359-25 Eyelet, Funnel Flange Copper .035"
.889 mm
.047"
1.194 mm
.118"
2.998 mm
.080"
2.032 mm
115-8431-25 Eyelet, Funnel Flange Brass .043"
1.092 mm
.059"
1.499 mm
.156"
3.962 mm
.095"
2.413 mm
115-8559-25 Eyelet, Funnel Flange Copper .055"
1.397 mm
.069"
1.753 mm
.126"
3.200 mm
.095"
2.413 mm
115-8736-25 Eyelet, Funnel Flange Brass .073"
1.854 mm
.089"
2.261 mm
.093"
2.362 mm
.125"
3.175 mm
All dimensions are plus or minus .003" (.076 mm)
