201-2100 Professional Repair Kit
  • The Professional Repair Kit is the most complete and most versatile circuit board repair kit you'll find anywhere. It's the total package.

  • The kit includes five Circuit Frames. Circuit Frames have a dry film adhesive backing so messy liquid adhesives are not needed for bonding.

  • Use the Circuit Frames to replace lifted and damaged surface mount and BGA pads. The repaired pad will meet the highest IPC guidelines.

  • Use the Circuit Frames to replace lifted and damaged lands. The repaired land will meet the highest IPC guidelines.

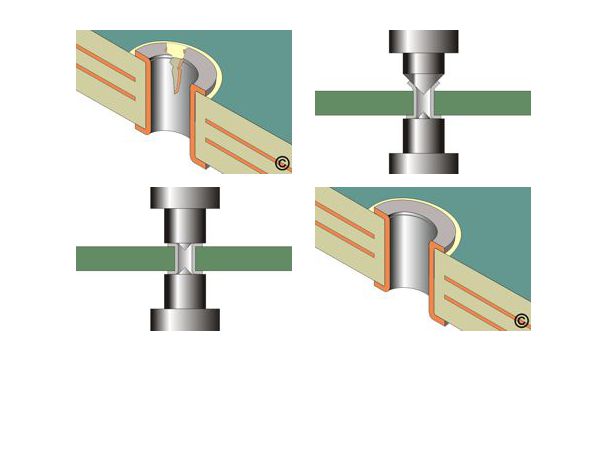

  • The kit includes four packages of eyelets and setting tools for plated through hole repair.

  • Eyelets are pure copper and tin plated. Eyelets are secured in place using setting tools included in the kit.

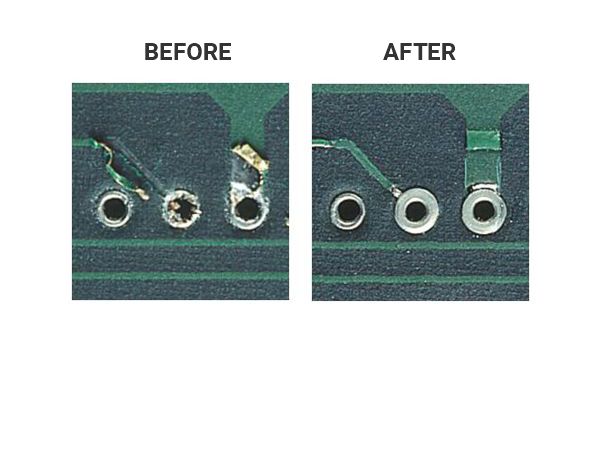

  • The kit includes four sizes of Circuit Tracks. These rectangular shaped conductors are made of pure copper ribbon and closely conform to the original conductor dimensions.

  • Bend the Circuit Track as needed to match the shape of the missing circuit. Circuit Tracks will match the original undamaged conductor trace dimensions.

  • The kit includes high-strength Circuit Bond epoxy and Color Agents for solder mask or base board repair.

  • Circuit Bond is a clear, low viscosity, superior strength epoxy, precisely measured out into two-compartment plastic packages so there's no measuring.

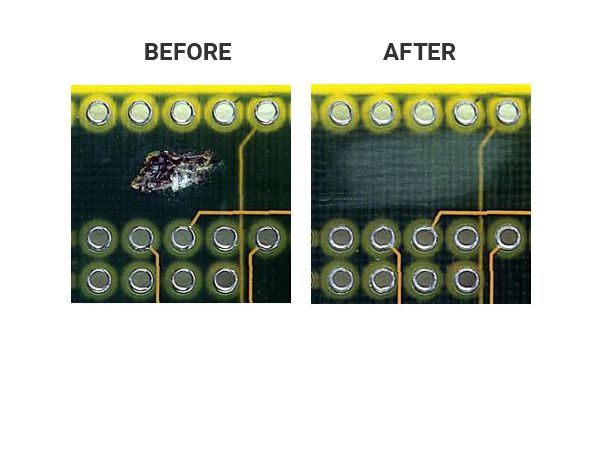

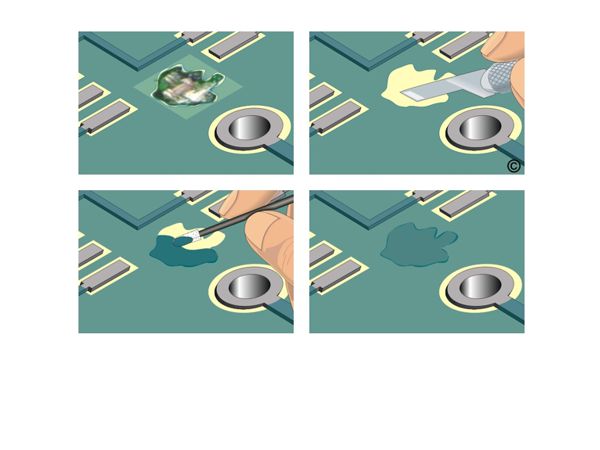

  • Use the epoxy to repair burns and other surface defects. Use the Color Agents to match the epoxy color with the surrounding surface.

  • All the tools and materials are neatly arranged in a conductive, ESD safe carrying case.

  • All tools and materials conform to IPC 7711/7721 Rework, Repair and Modification of Electronics Assemblies guidelines.

Features
Includes adhesive-backed replacement circuits that do not use messy epoxies.
Includes eyelets for plated through hole repair.
Includes Circuit Tracks to repair damaged circuits.
Includes color agents for cosmetic color matching.
Packaged in a conductive, ESD safe carrying case.
Tools and materials conform to IPC guidelines.

Description
video
VIDEO
The Professional Repair Kit is the most complete and most versatile circuit board repair kit you'll find anywhere. It's the total package.

Includes unique replacement circuits that do not use messy liquid adhesives for bonding. Includes eyelets and setting tools for plated through hole repair, Circuit Tracks to repair damaged circuit traces, adhesives and color agents for solder mask or base board repair all packed in a convenient ESD safe carrying case.

If you need to repair damaged circuit boards, the all-in-one Professional Kit is what you need.
Operating Instructions
Ordering
Part No. Item Price Order
201-2100 Professional Repair Kit, 120 VAC $839.00 Each
201-2102 Professional Repair Kit, 230 VAC $859.00 Each
Harmonize Code: 8205.59.0000

To order click the "Order" button and follow the instructions. You may also order from distributors around the world.
Professional Repair Kit Includes
Qty Part No. / Item Price Order
1
115-3136 Abrader
Mild abrasive for removing oxides and contaminates from conductive surfaces.
$7.95 Each
1
235-1000-5 Alcohol Swab
Self-saturating Isopropyl alcohol swab. Squeeze handle to release alcohol.
$4.95 Pkg/5
1
115-6000 Ball Mill Pack - Sizes #1/2 - #7
Pack includes 8 carbide ball mills for precision drilling and grinding.
$31.95 Pkg/8
1
115-2706 Bonding Film
Dry film adhesive used to bond lifted lands, pads and conductors.
$16.50 Each
1
115-3102 Bonding Iron, 120 VAC
Delivers the optimal heat for curing adhesive bonding film.
$109.00 Each
1
115-2104 Bonding Tip, Tapered
Tip used to bond replacement conductors to circuit boards for repair.
$45.00 Each
1
115-2204 Bonding Tip, .080" (2.03 mm) Diameter
Tip used to bond replacement conductors to circuit boards for repair.
$45.00 Each
1
115-2206 Bonding Tip, .120" (3.05 mm) Diameter
Tip used to bond replacement conductors to circuit boards for repair.
$45.00 Each
1
115-2316 Bonding Tip, .080" x .120" (2.03 mm x 3.05 mm)
Tip used to bond replacement conductors to circuit boards for repair.
$45.00 Each
1
115-2322 Bonding Tip, .120" x .500" (3.05 mm x 12.70 mm)
Tip used to bond replacement conductors to circuit boards for repair.
$45.00 Each
1
115-3108PCB Circuit Board
Circuit board perfect for practice work.
$16.95 Each
4
115-3302 Circuit Bond Packs
Clear, superior strength epoxy in two-compartment plastic packages
$12.95 Each
1
Circuit Frame
CP050060AS Circuit Frame
Lands .050"/.060" (1.27 mm/1.52 mm) - Bright Tin
$44.00 Each
1
Circuit Frame
CBLANKAS Circuit Frame
Blank - Bright Tin
$44.00 Each
1
Circuit Frame
CFV002AS Circuit Frame
Variety - Bright Tin
$44.00 Each
1
Circuit Frame
CFV003AS Circuit Frame
Variety - Bright Tin
$44.00 Each
1
Circuit Frame
CSVAR1AS Circuit Frame
Variety - Bright Tin
$44.00 Each
1
115-5206 Circuit Track, .002" x .006"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
1
115-5210 Circuit Track, .002" x .010"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
1
115-5315 Circuit Track, .003" x .015"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
1
115-5530 Circuit Track, .005" x .030"
Rectangular shaped pure copper wire used to repair damaged conductors.
$39.95 Each
Pkg/5
235-2106-5 Cleaning Brushes
Disposable brushes for use with solvents for cleaning and application of coatings.
$3.95 Pkg/5
1
115-9348 Color Agent, Green
Use to tint epoxy for solder mask and base board repair.
$19.95 Each
1
115-9358 Color Agent, Light Green
Use to tint epoxy for solder mask and base board repair.
$19.95 Each
Pkg/25
115-7306-25 Eyelet, Flat Flange
Brass Eyelet - ID .030" OD .040" Length .093" Flange .060"
$29.00 Pkg/25
Pkg/25
115-7366-25 Eyelet, Flat Flange
Copper Eyelet - ID .036" OD .046" Length .093" Flange .076"
$29.00 Pkg/25
Pkg/25
115-7456-25 Eyelet, Flat Flange
Copper Eyelet - ID .045" OD .059" Length .090" Flange .090"
$29.00 Pkg/25
Pkg/25
115-7576-25 Eyelet, Flat Flange
Copper Eyelet - ID .057" OD .067" Length .095" Flange .111"
$29.00 Pkg/25
1
115-3132 File
High carbon steel needle file perfect for all kinds of detail work.
$9.95 Each
Pkg/5
235-2102-5 Foam Swab
Ideal for absorbing cleaning solvents, and applying color agents and epoxies.
$49.50 Pkg/100
Pkg/126
235-3025 High Temp Tape Discs
High temperature polyimide tape discs, .25" diameter.
$5.95 Pkg/126
Pkg/60
235-3050 High Temp Tape Discs
High temperature polyimide tape discs, .50" diameter.
$5.95 Pkg/60
1
355-0614 Knife with #16 Blades
A must-have tool for precise cutting, scraping and trimming.
$9.95 Each
1
115-3115 Measuring Microscope Pen, 25X
Pocket pen microscope with measuring reticle.
$29.00 Each
Pkg/5
355-3102-5 Micro Probes
Use to dispense a minute amount of adhesive and for micro-positioning of small objects.
$4.95 Pkg/5
Pkg/5
115-3315-5 Mixing Picks
Unique mixing sticks have a paddle shape on one and sharp pick on the opposite end.
$9.50 Pkg/100
5
115-3312 Plastic Cup
Small disposable cup for mixing epoxies and holding small items.
$9.50 Pkg/100
1
335-3195 Probe
Sharp dental style probe for manipulating small objects and removal of small debris.
$9.95 Each
1
335-3197 Scraper
Hardened stainless steel tip for scraping solder mask and removing defects.
$9.95 Each
2
115-3120 Setting Tool
Used to properly form eyelets used to repair plated holes in circuit boards.
$16.95 each
Pkg/3
115-3902 Syringes
Polypropylene syringe barrels with stainless steel dispensing tips.
$7.95 Pkg/3
1
115-3122 Tool Base
Support base for Setting Tool when forming eyelets for plated hole repair.
$9.95 Each
1

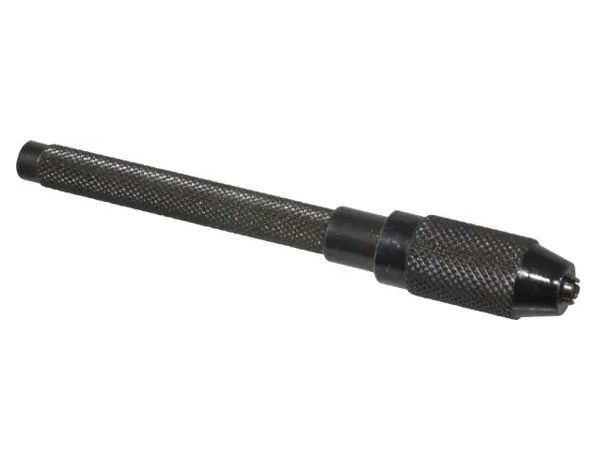

115-3139 Tool Grip
Handy tool has vise jaws to grip small items.
$29.00 Each
1
335-5188 Tweezer, Crossover
Self locking stainless steel tweezers provide hands-free clamping force.
$9.95 Each
1
335-5185 Tweezer, Point Tip
Fine point tweezers for precision work.
$9.95 Each
1
335-3196 Wire Guide
Use to form bends in wires and hold wires during soldering and bonding.
$9.95 Each
