201-3160 Heat Shield Kit
  • Kit includes tools and materials needed to protect heat sensitive area of a circuit board during rework.

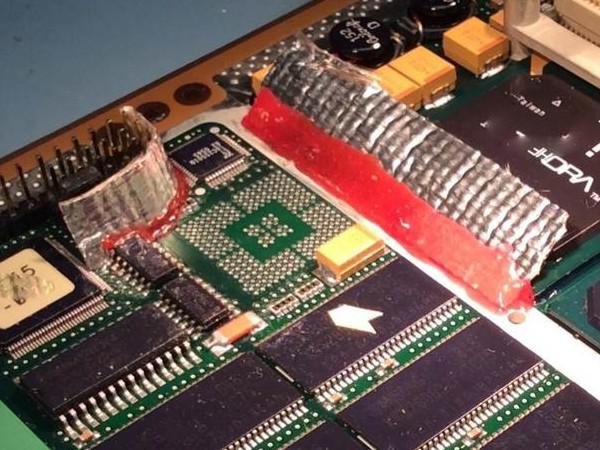

  • 235-4010 Heat Shield Blanket protecting components and a connector prior to installation of a BGA component.

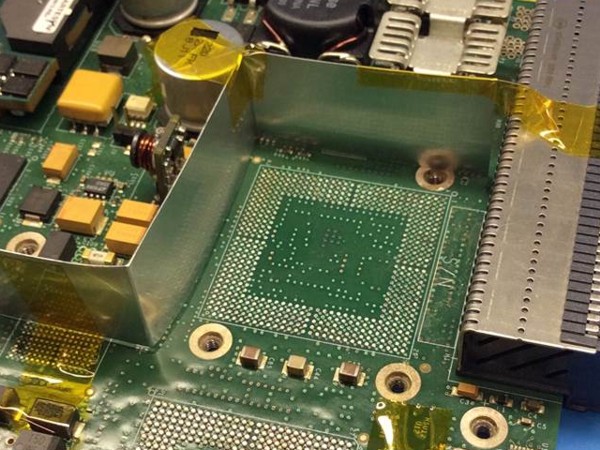

  • 235-4060 Heat Shield Plate cut to shape and held in place with High Temperature Tape.

Features
Aluminized heat shield insulates the circuit board surface and components from extreme heat.
Aluminum plates deflect excess heat.
Quick cure high temperature mask seals seams to block extraneous heat flow.
Includes high temperature tape, tools and materials.
All the tools and materials are packaged in a conductive, ESD safe carrying case.

Description
This kit includes all the tools and materials you need to protect heat sensitive areas of an assembled circuit board from excessive heat exposure during rework operations. This kit is is ideal for the protection of adjacent components at risk of collateral heat damage during hot gas BGA rework.

During component rework, protection of nearby components is often mandatory to avoid collateral heat damage or inadvertent reflow.

Collateral heat damage or unintended reflow of adjacent component solder connections can result in component damage, oxidation, de-wetting, pad damage, wicking, starved joints and scorching. These issues can create new unintended rework problems. The rework technician must be constantly aware of the effect of heat on the target device or circuit, plus how it affects components near the target device on both sides of the assembly.

The kit includes sheets of aluminized heat shielding material, aluminum plates, high temperature liquid mask, high temperature tape, scissors and a variety of tools.
Operating Instructions
Ordering
Part No. Item Price Order
201-3160 Heat Shield Kit $179.00 Each
To order click the "Order" button and follow the instructions. You may also order from distributors around the world.
Heat Shield Kit Includes
Qty Part No. / Item Price Order
Pkg/5
235-1000-5 Alcohol Swab
Self-saturating Isopropyl alcohol swab. Squeeze handle to release alcohol.
$4.95 Pkg/5
Pkg/5

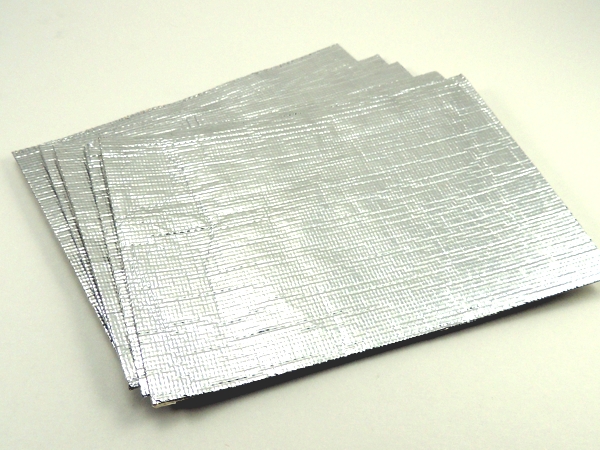

235-4010 Heat Shield Blanket, 5" x 7"
Self-adhering aluminized heat shield.
$24.95/Pkg 5
Pkg/5

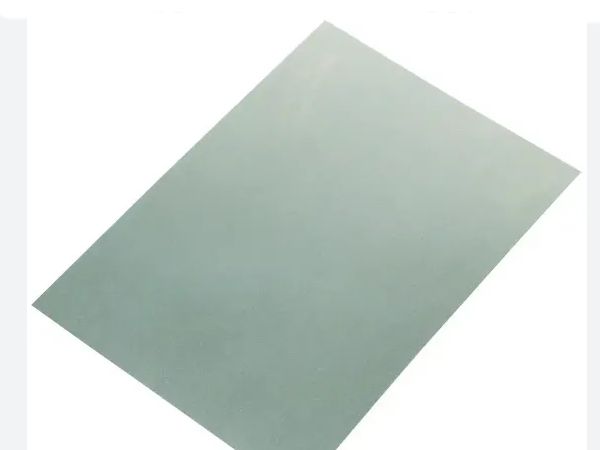

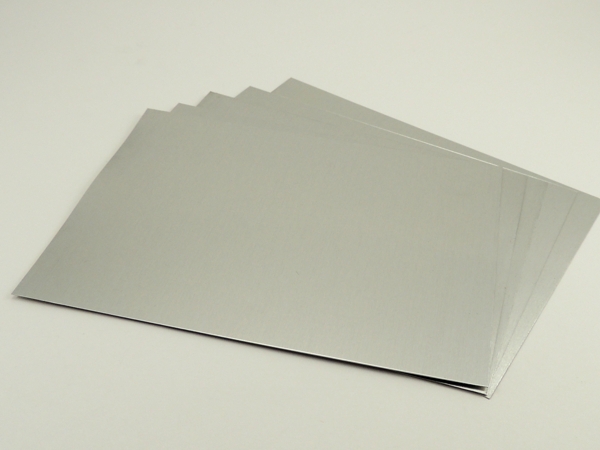

235-4060 Heat Shield Plates, 5" x 7"
Aluminum plates deflect heat to protect temperature sensitive areas.
$19.95/Pkg 5
Pkg/3

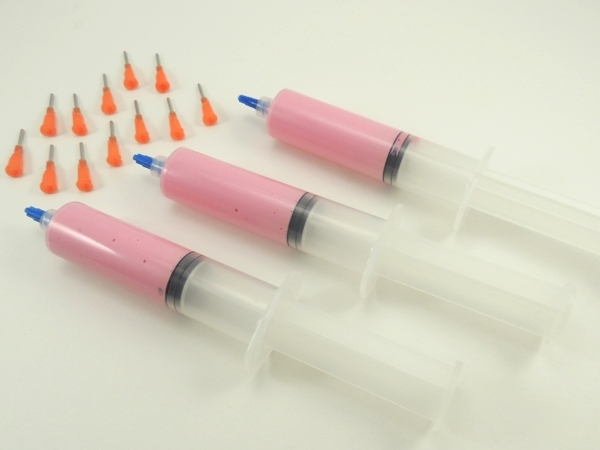

115-9010 Mask, High Temperature
High temperature quick set liquid mask.
$49.95 Pkg/3
5
115-3315-5 Mixing Picks
Unique mixing sticks have a paddle shape on one and sharp pick on the opposite end.
$9.50 Pkg/100
1
335-3195 Probe
Sharp dental style probe for manipulating small objects and removal of small debris.
$9.95 Each
1

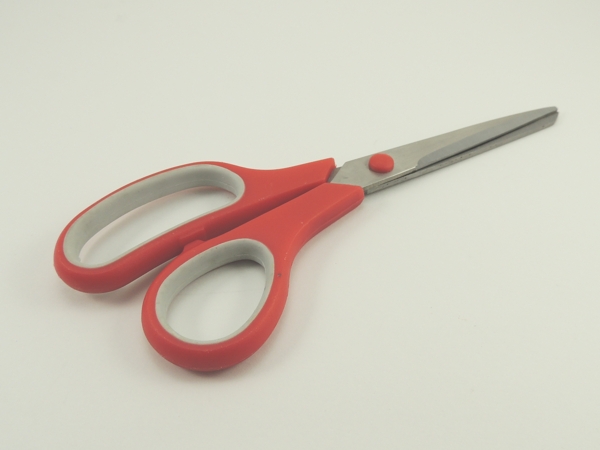

335-3150 Scissors, 8"
Heavy duty 8" scissors with stainless steel blades and comfort plastic grips.
$9.95 Each
1
335-3197 Scraper
Hardened stainless steel tip for scraping solder mask and removing defects.
$9.95 Each
1

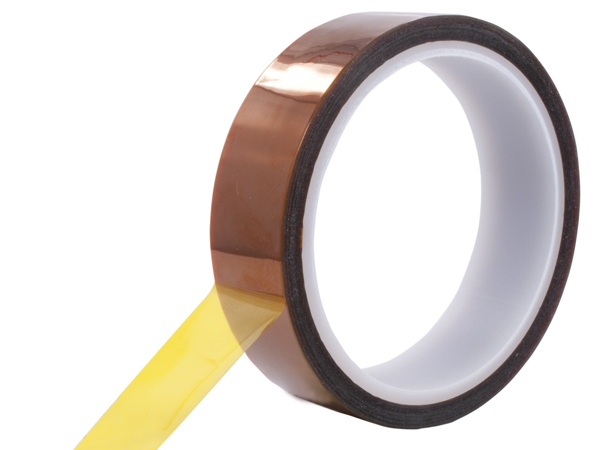

290-2075 Tape, High Temperature
High Temperature Tape, .75" wide x 36 yards long
$24.50 Each
Applicable Safety Data Sheets
Alcohol Swab
High Temperature Mask
Reference Procedures
1.0 Foreword
2.0 Basic Procedures
2.2 Cleaning
2.5 Baking and Preheating
7.0 Soldering Procedures
7.1.1 Soldering Basics
7.1.2 Preparation For Soldering And Component Removal
7.2.2 Soldering Through Hole Components, Solder Fountain Method
7.3.2 Soldering Surface Mount Chip Components, Hot Gas Method
7.4.3 Soldering Surface Mount J Lead Components Hot Gas Method
7.5.3 Soldering Surface Mount Gull Wing Components Hot Gas Method
8.1.2 Component Removal, Through Hole Components, Solder Fountain Method
8.3.2 Component Removal, Surface Mount J Lead Components, Hot Gas/Air Method
8.4.2 Component Removal, Surface Mount Gull Wing Components, Hot Gas/Air Method
9.3.1 BGA Component Rework, Eutectic Solder Ball
