201-4350 Repair Skills Practice Kit
|
201-4350 Repair Skills Practice Kit
This kit includes tools and materials for practicing the repair of plated holes, surface mount pads, edge contacts, base board, and conductors.
The Following Items Are Included.
A multi-layer circuit board to practice component soldering, plus base board, pad, land, and plated-hole repair.
A Circuit Frame with dry film, adhesive-backed replacement circuits, pads, lands, and edge contacts in various sizes.
Two packages of clear, low-viscosity, superior-strength epoxy precisely measured into two-compartment packages.
Disposal plastic mixing cups and mixing sticks for mixing and applying the epoxy.
A color agent to tint the epoxy color for solder mask repair or circuit base board repairs.
Two sizes of rectangular shaped pure copper ribbon to practice damaged conductor repair.
Two sizes of eyelets to practice plated-hole repair.
High-temperature tape discs to use during various practice procedures.
Foam swabs for cleaning and application of coatings.
Disposable cleaning brushes.
Five super-sharp stainless-steel micro-probes for dispensing a minute amount of epoxy.
An abrader with a mild abrasive for removing oxides and contaminants.
A knife with five replacement blades. A must-have tool for precise cutting, scraping, and trimming.
Instructions with links to detailed "How To" procedures following IPC recommended guidelines.
SMT Pad Repair - guide 4-7-2
Land Repair - guide 4-5-2
Edge Contact Repair - guide 4-6-2
Circuit Track Repair - guide 4-2-1
Plated Hole Repair - guide 5-1-0
Base Board Repair - guide 3-5-1
❮
❯
|
This kit will help operators improve their circuit board repair skills and give them an advantage toward becoming IPC certified.
$170.00 Each
| 201-4350 |
Repair Skills Practice Kit |
|
Features |
- The Repair Skills Practice Kit will help operators brush up on their circuit board repair skills.
- Includes dry film, adhesive-backed replacement circuits that do not use messy liquid epoxy.
- Includes Circuit Tracks to repair damaged circuits.
- Includes adhesives and color agents for solder mask or base board repair.
- Includes eyelets for plated through hole repair.
- Every item is prime quality, time-tested, to meet high standards.
- Tools and materials conform to IPC guidelines.
|
|
|
Full Description
The Repair Skills Practice Kit will help operators improve their circuit board repair skills and give them an advantage toward becoming IPC certified. Using our Repair Skills Practice Kit and its tools and materials, you can sharpen your skills until you're ready for certification.
Includes a circuit board with various plated holes, surface mount pads, replacement circuit tracks, eyelets, adhesives, and more. These kits do not include soldering irons and bonding irons for bonding the replacement pads and lands.
|
| Harmonize Code |
8473.30.0000 |
| Export Administration Regulations (EAR) |
EAR99 |
| Export Control Classification Number (ECCN) |
Not Applicable |
|
| Qty |
Part No. / Item |
Price |
Qty / Order |
| 1 |
115-3108 Practice Circuit Board
Circuit board for practice and skills development.
|
$19.00 Each |
|
| 1 |
115-3136 Abrader
Mild abrasive for removing oxides and contaminants.
|
$8.00 Each |
|
| 2 |
115-3302 Circuit Bond Epoxy
Clear, superior strength epoxy in two-compartment plastic packages.
|
$19.00 Each |
|
| Pkg/5 |
115-3312-5 Plastic Cup
Small disposable cup for mixing epoxies and holding small items.
|
$7.00 Pkg/5 |
|
| Pkg/5 |
115-3315-5 Mixing Picks
Disposable mixing sticks for mixing and applying adhesives.
|
$3.00 Pkg/5 |
|
| 1 |

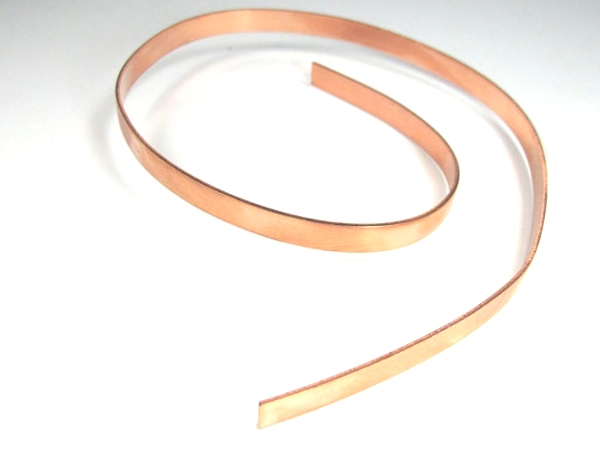

115-5210 Circuit Track, .002" x .010"
Rectangular shaped pure copper wire used to repair damaged conductors.
|
$42.00 Each |
|
| 1 |
115-5520 Circuit Track, .005" x .020"
Rectangular shaped pure copper wire used to repair damaged conductors.
|
$42.00 Each |
|
| Pkg/25 |

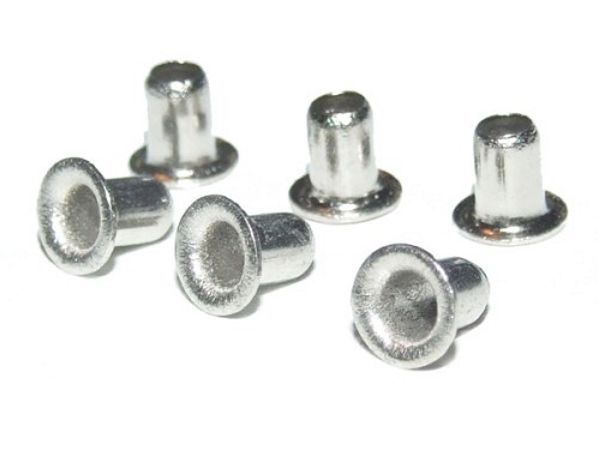

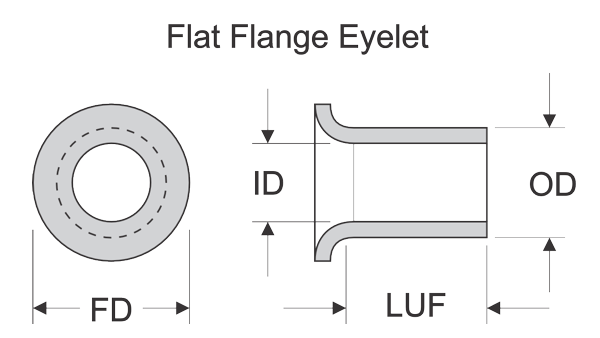

115-7306-25 Eyelet, Flat Flange
, .030" ID, .040" OD, .093" LUF, .060" FD, Brass
|
$37.00 Pkg/25 |
|
| Pkg/25 |
115-7456-25 Eyelet, Flat Flange
, .045" ID, .059" OD, .090" LUF, .090" FD, Copper
|
$37.00 Pkg/25 |
|
| 1 |
115-9348 Color Agent, Green
Use to tint epoxy for solder mask and base board repair.
|
$23.00 Each |
|
| Pkg/5 |
235-2102-5 Foam Swab, Small
Swabs for use with solvents and application of color agents and epoxies.
|
$10.00 Pkg/5 |
|
| Pkg/5 |

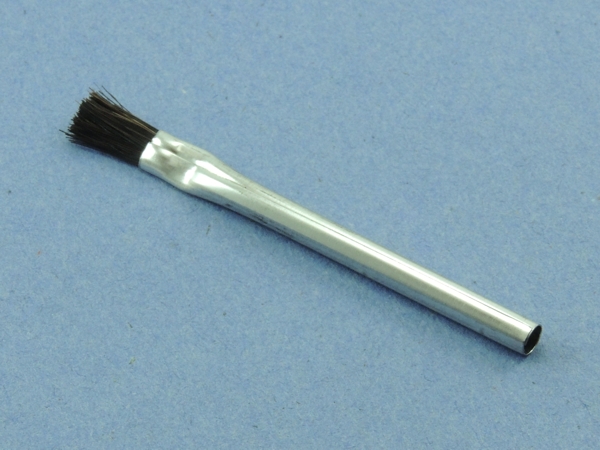

235-2106-5 Cleaning Brushes
Disposable brushes for solvent cleaning and application of coatings.
|
$12.00 Pkg/5 |
|
| Pkg/5 |
235-2108-5 Foam Swab, Large
Swabs for use with solvents and application of color agents and epoxies.
|
$14.00 Pkg/5 |
|
| Pkg/60 |

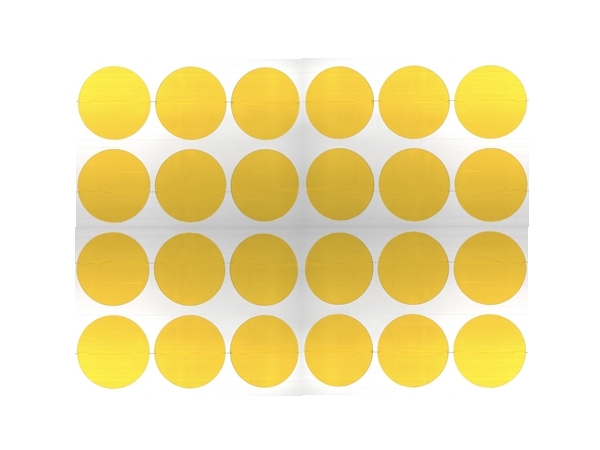

235-3050 High Temp Tape Discs
High temperature polyimide tape discs, .50" diameter.
|
$6.00 Pkg/60 |
|
| 1 |
355-0614 Knife with #16 Blades
A must-have tool for precise cutting, scraping and trimming.
|
$13.00 Each |
|
| Pkg/5 |
355-3102-5 Micro Probes
Sharp probes for dispensing adhesive and positioning small objects.
|
$5.00 Pkg/5 |
|
| 1 |
525-2101-1 Circuit Frame
Circuit Frame, Assortment, Bright Tin Plated
|
$63.00 Each
|
|
|
Order direct or from a distributor. Freight, duties, and value added taxes may increase prices for products outside the USA.
|
|
|
|
|
|
|
|
|
|
|
