201-1400 Land/Pad Repair Kit
  • This kit includes the tools and materials needed to reliably replace damaged lands, surface mount and BGA pads.

  • The kit includes two Circuit Frames. Circuit Frames have a dry film adhesive backing so messy liquid adhesives are not needed for bonding.

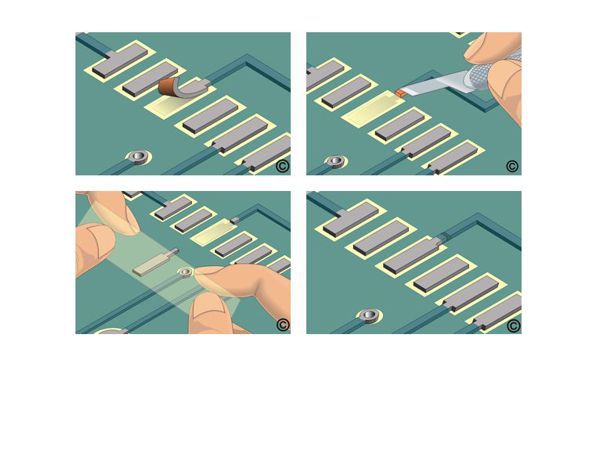

  • Use the Circuit Frames to replace lifted and damaged surface mount and BGA pads. The repaired pad will meet the highest IPC guidelines.

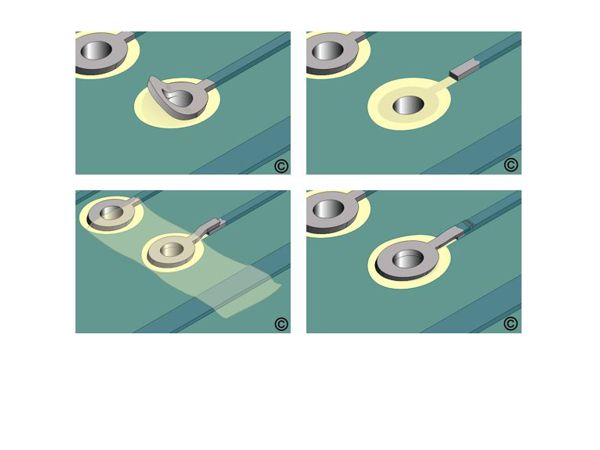

  • Use the Circuit Frames to replace lifted and damaged lands. The repaired land will meet the highest IPC guidelines.

  • The kit includes high-strength Circuit Bond epoxy and Color Agents for solder mask or base board repair.

  • Circuit Bond is a clear, low viscosity, superior strength epoxy, precisely measured out into two-compartment plastic packages so there's no measuring.

  • Use the epoxy to repair burns and other surface defects. Use the Color Agents to match the epoxy color with the surrounding surface.

  • All the tools and materials are neatly arranged in a conductive, ESD safe carrying case.

  • All tools and materials conform to IPC 7711/7721 Rework, Repair and Modification of Electronics Assemblies guidelines.

Features
Includes dry film, adhesive-backed replacement circuits that do not use messy liquid adhesives for bonding.
Includes epoxy for solder mask or base board repair.
All the tools and materials are neatly arranged in a conductive, ESD safe carrying case.
Tools and materials conform to IPC guidelines.
Every item is prime quality, time-tested, to meet high standards.

Description
This kit includes the tools and materials needed to reliably repair or replace damaged lands, surface mount and BGA pads.

The unique Circuit Frames have a dry film adhesive backing. You simply select the appropriate size pad or land, trim it from the Circuit Frame and bond it to the circuit board surface using a bonding iron included in the kit.

This kit that is specifically designed to make the repair process as simple and reliable as possible. All the tools and materials are packaged in a rugged ESD safe carrying case.
Operating Instructions
Ordering
Part No. Item Price Order
201-1400 Land/Pad Repair Kit, 120 VAC $399.00 Each
201-1402 Land/Pad Repair Kit, 230 VAC $419.00 Each
Harmonize Code: 8205.59.0000

To order click the "Order" button and follow the instructions. You may also order from distributors around the world.
Land/Pad Repair Kit Includes
Qty Part No. / Item Price Order
1
115-3136 Abrader
Mild abrasive for removing oxides and contaminates from conductive surfaces.
$7.95 Each
Pkg/5
235-1000-5 Alcohol Swab
Self-saturating Isopropyl alcohol swab. Squeeze handle to release alcohol.
$4.95 Pkg/5
1

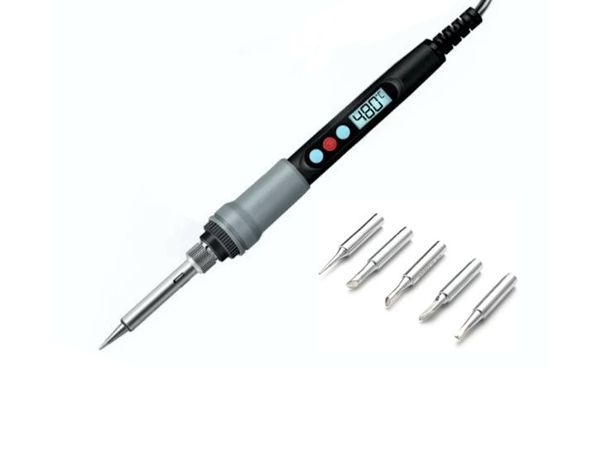

115-3102 Bonding Iron, 120 VAC
Delivers the optimal heat for curing adhesive bonding film.
$109.00 Each
1
115-2104 Bonding Tip, Tapered
Tip used to bond replacement conductors to circuit boards for repair.
$45.00 Each
1
115-2204 Bonding Tip, .080" (2.03 mm) Diameter
Tip used to bond replacement conductors to circuit boards for repair.
$45.00 Each
1
115-2206 Bonding Tip, .120" (3.05 mm) Diameter
Tip used to bond replacement conductors to circuit boards for repair.
$45.00 Each
1
115-2316 Bonding Tip, .080" x .120" (2.03 mm x 3.05 mm)
Tip used to bond replacement conductors to circuit boards for repair.
$45.00 Each
4
115-3302 Circuit Bond Packs
Clear, superior strength epoxy in two-compartment plastic packages
$12.95 Each
1
Circuit Frame
CFV002AS Circuit Frame
Variety - Bright Tin
$44.00 Each
1
Circuit Frame
CFV003AS Circuit Frame
Variety - Bright Tin
$44.00 Each
Pkg/5
235-2106-5 Cleaning Brushes
Disposable brushes for use with solvents for cleaning and application of coatings.
$3.95 Pkg/5
Pkg/5
235-2102-5 Foam Swab
Ideal for absorbing cleaning solvents, and applying color agents and epoxies.
$49.50 Pkg/100
Pkg/126
235-3025 High Temp Tape Discs
High temperature polyimide tape discs, .25" diameter.
$5.95 Pkg/126
Pkg/60
235-3050 High Temp Tape Discs
High temperature polyimide tape discs, .50" diameter.
$5.95 Pkg/60
1
355-0614 Knife with #16 Blades
A must-have tool for precise cutting, scraping and trimming.
$9.95 Each
1
115-3115 Measuring Microscope Pen, 25X
Pocket pen microscope with measuring reticle.
$29.00 Each
Pkg/5
355-3102-5 Micro Probes
Use to dispense a minute amount of adhesive and for micro-positioning of small objects.
$4.95 Pkg/5
Pkg/5
115-3315-5 Mixing Picks
Unique mixing sticks have a paddle shape on one and sharp pick on the opposite end.
$9.50 Pkg/100
5
115-3312 Plastic Cup
Small disposable cup for mixing epoxies and holding small items.
$9.50 Pkg/100
1
335-3195 Probe
Sharp dental style probe for manipulating small objects and removal of small debris.
$9.95 Each
1
335-5188 Tweezer, Crossover
Self locking stainless steel tweezers provide hands-free clamping force.
$9.95 Each
1
335-5185 Tweezer, Point Tip
Fine point tweezers for precision work.
$9.95 Each
Applicable Safety Data Sheets
Alcohol Swab
Circuit Bond
Circuit Frame/Bonding Film
Color Agent
Reference Procedures
1.0 Foreword
2.0 Basic Procedures
2.2 Cleaning
2.4.1 Coating Replacement, Solder Mask
2.7 Epoxy Mixing and Handling
3.0 Base Board Procedures
4.1.1 Lifted Conductor Repair, Epoxy Seal Method
4.1.2 Lifted Conductor Repair, Film Adhesive
4.4.1 Lifted Land Repair, Epoxy Seal
4.4.2 Lifted Land Repair, Film Adhesive
4.5.1 Land Repair, Epoxy Method
4.5.2 Land Repair, Film Adhesive
4.7.1 Surface Mount Pad Repair, Adhesive Method
4.7.2 Surface Mount Pad Repair, Film Adhesive
4.7.3 BGA Pad Repair, Film Adhesive
