201-6102 Gold Contact Plating Kit, 230 VAC |
|
| $1,610.00 Each | DATA SHEET |
The Gold Contact Plating Kit provides a complete solution for restoring worn, solder-contaminated or damaged gold edge contacts on printed circuit boards. Gold contacts are commonly used on edge connectors because they provide excellent conductivity and corrosion resistance. When these contacts become damaged or contaminated with solder during repair operations, they can be restored using precision brush plating techniques.
The kit includes a regulated DC power supply, plating probes with pre-wrapped screw-on anodes, and all of the tools and materials required to perform controlled electroplating repairs. Included plating solutions allow technicians to properly prepare the surface, apply a nickel underlayer when required, and plate a durable gold finish that restores reliable electrical performance.
A variety of cleaning tools, abrasives and application accessories are also provided to prepare the repair site and support consistent plating results. The system is designed to meet IPC-recommended repair practices and is packaged as a complete kit so technicians can perform professional gold contact restoration in manufacturing, laboratory and field repair environments.
| This kit includes hazardous plating solutions and must ship by FedEx and UPS only. Import and customs restrictions may prohibit shipment to The Philippines and China. |  |
| Ordering | |||
| Part No. | Description | Price | Qty / Order |
| 201-6102 | Gold Contact Plating Kit, 230 VAC | $1,610.00 Each | |
| Specifically designed and packaged for gold edge contact plating. |
| Plating probes use pre-wrapped plating anodes. |
| Industry approved and conforms to IPC guidelines. |
| Variable power supply provides accurate voltage and current. |
| Kit includes Gold, Nickel and Electroclean plating solutions. |
| Qty | Part No. / Item | Price | Qty / Order |
| 1 |

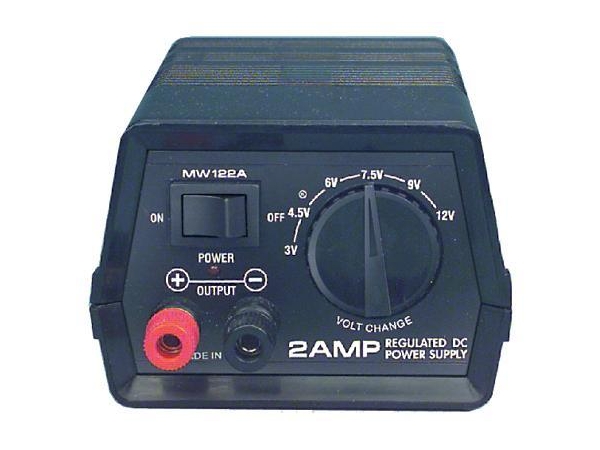

Multi Voltage Regulated Power Supply |
$139.00 Each | |
| 1 |
Electroplating solution for gold surfaces and gold edge contacts. |
$545.00 Each | |
| 1 |

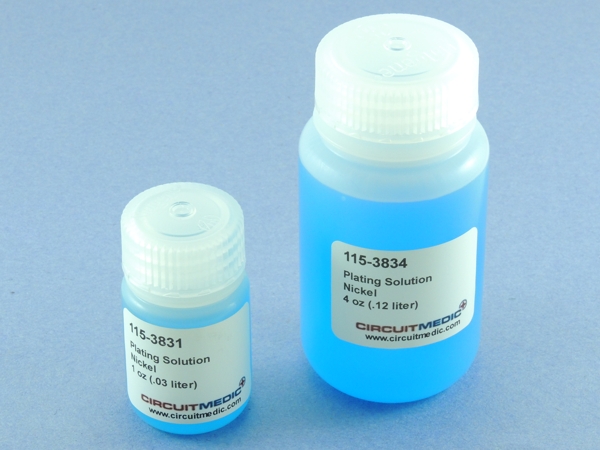

Electroplating solution for nickel surfaces and nickel edge contacts. |
$101.00 Each | |
| 1 |

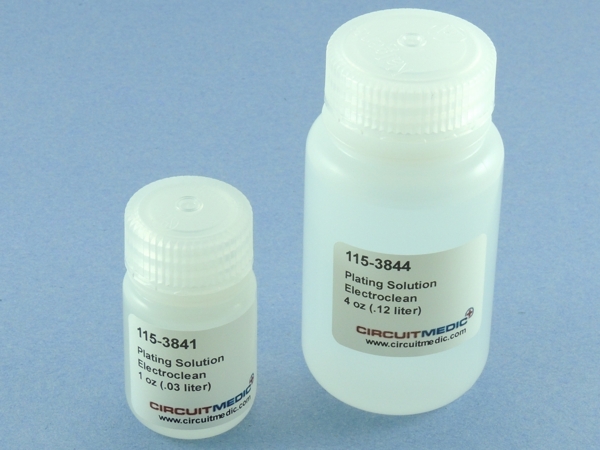

Solution for preparation prior to electroplating. |
$101.00 Each | |
| 3 |

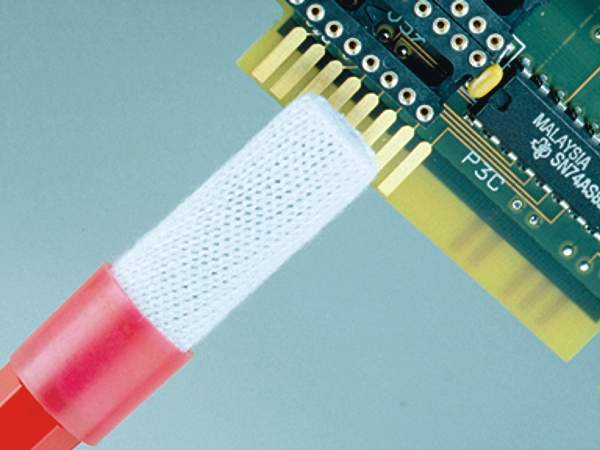

Pre-wrapped, screw-on plating anode designed for circuit board plating. |
$65.00 Each | |
| 3 |

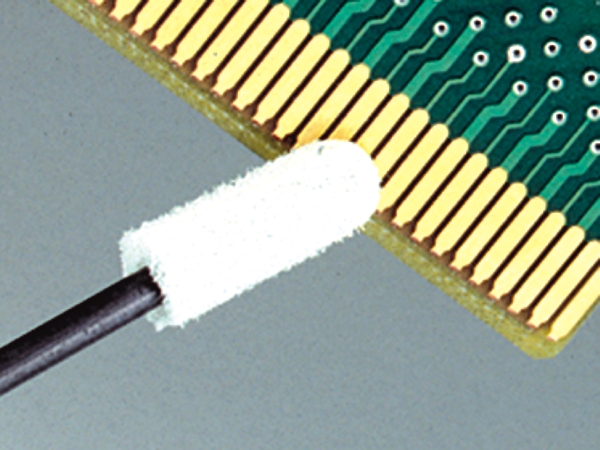

Small plating anode designed for circuit board plating. |
$52.00 Each | |
| Pkg/10 |
Absorbent foam tip used with small plating anode. |
$13.00 Pkg/10 | |
| 1 |

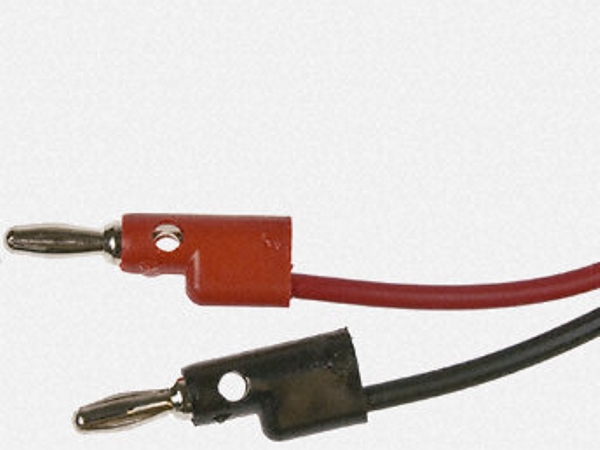

Standard test lead cables with stackable banana plugs. |
$32.00 Pair | |
| 1 |

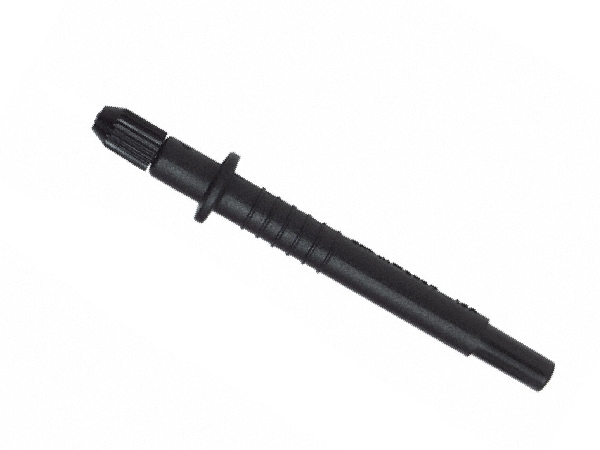

Nylon plating probe used for ground connection during plating. |
$56.00 Each | |
| 3 |

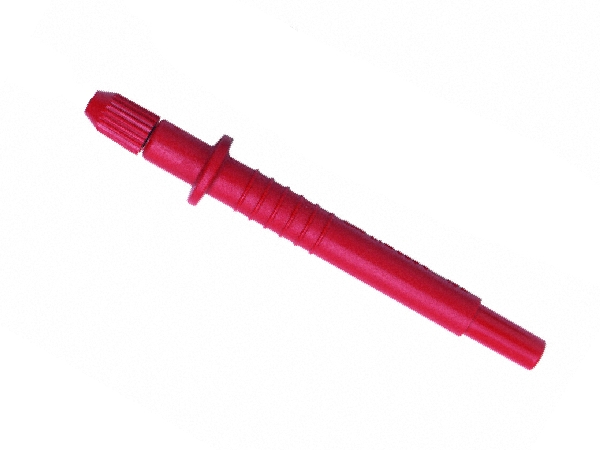

Nylon plating probe for use with plating anodes. |
$56.00 Each | |
| 1 |

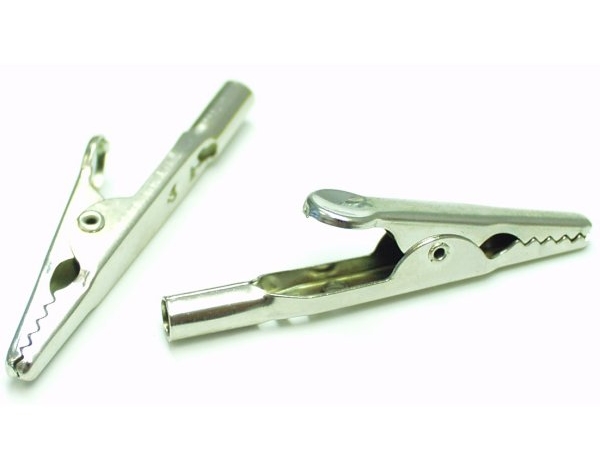

Use to provide ground connection. |
$2.00 Each | |
| 1 |

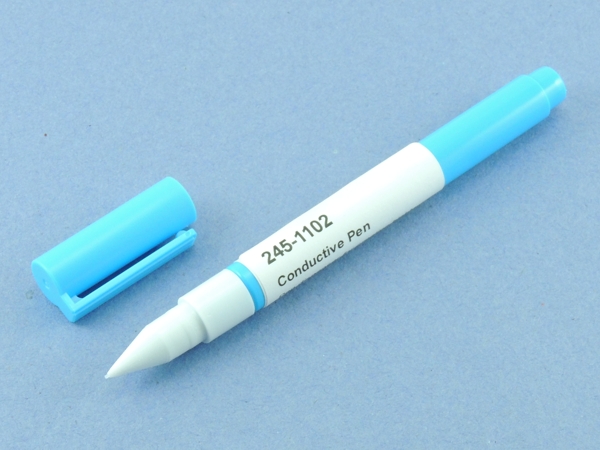

Pen dispenser for creating conductive silver traces. |
$90.00 Each | |
| 1 |

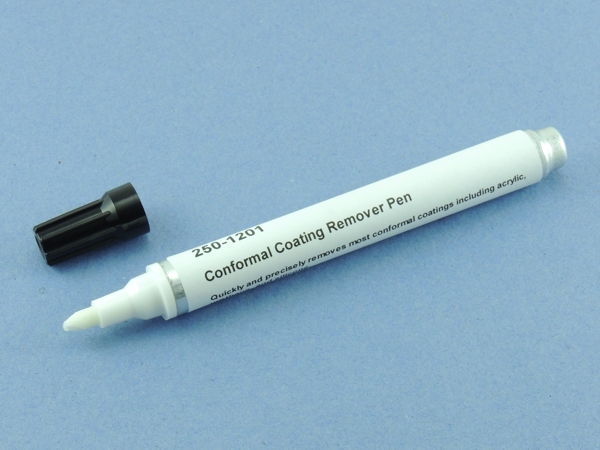

For precise removal of silicone, acrylic and urethane coatings from circuit boards. |
$55.00 Each | |
| 1 |
Ideal for masking during plating, coating removal and microblasting. |
$14.00 Each | |
| 1 |
This tape is specifically designed to test plating adhesion. |
$32.00 Each | |
| 1 |

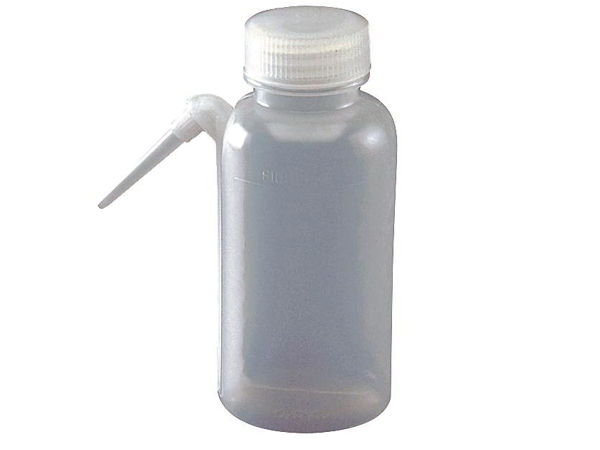

4 ounce rinse bottle made from low-density polyethylene. |
$15.00 Each | |
| 2 Pkg/5 |

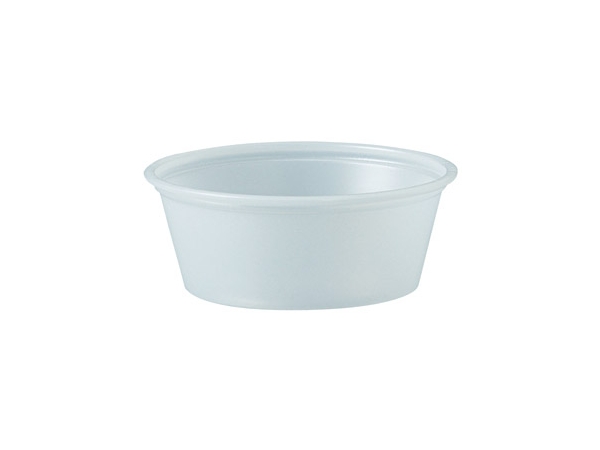

Small disposable cup for mixing epoxies and holding small items. |
$7.00 Pkg/5 | |
| 1 |

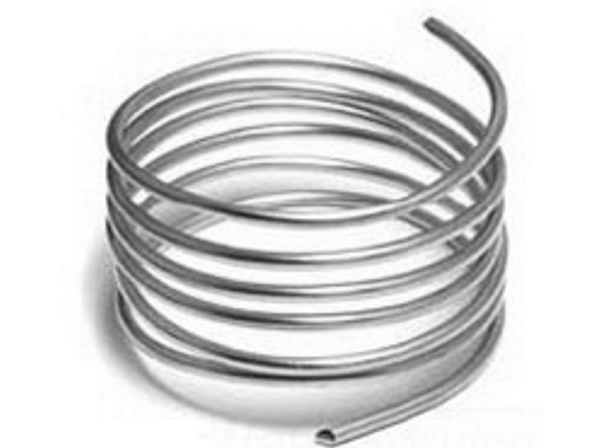

Used to create buss connection during plating. |
$10.00 Each | |
| 1 |

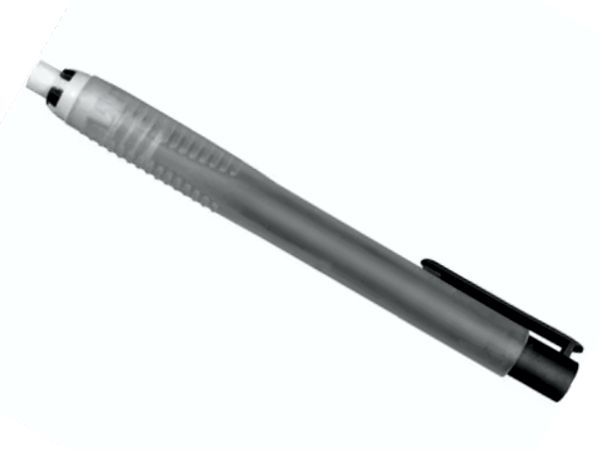

Mild abrasive for removing oxides and contaminants. |
$8.00 Each | |
| Pkg/5 |

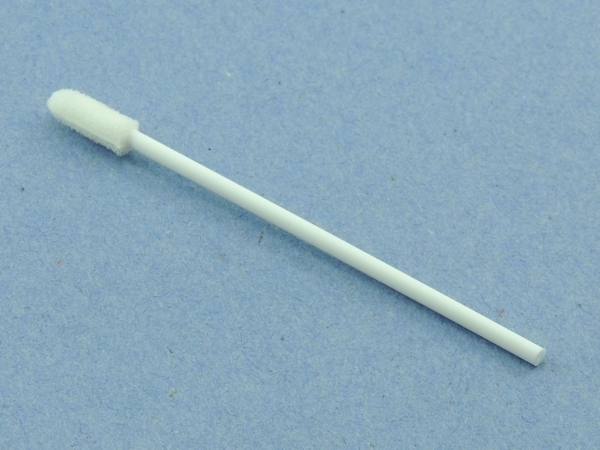

Swabs for use with solvents, color agents, and epoxies. |
$10.00 Pkg/5 | |
| Pkg/5 |
Swabs for use with solvents, color agents, and epoxies. |
$10.00 Pkg/5 | |
| Pkg/5 |

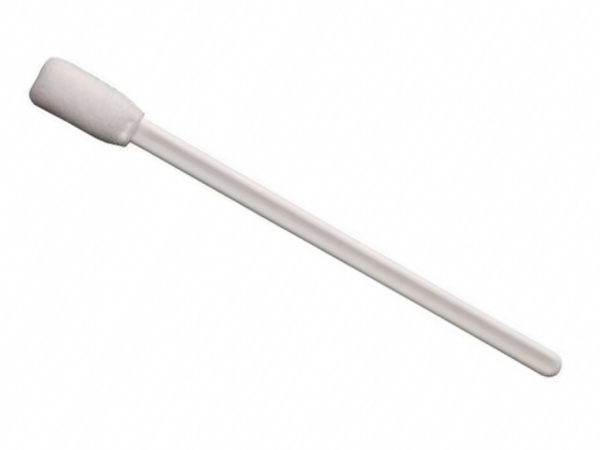

Swabs for use with solvents, color agents, and epoxies. |
$14.00 Pkg/5 |
| Number / Title |
| 4.6.3 Edge Contact Repair, Plating |
| Harmonize Code | 201-6102 |
| Export Administration Regulations (EAR) | EAR99 |
| Export Control Classification Number (ECCN) | Not Applicable |
